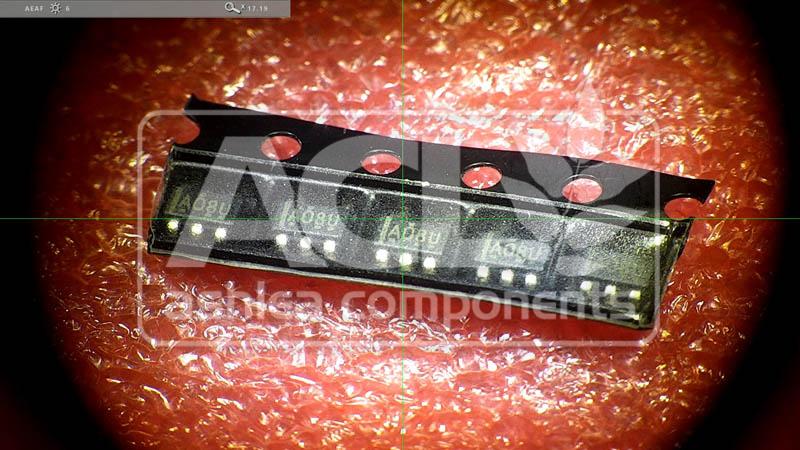

SN74AHC1G08DBVR – TEXAS INSTRUMENTS

Part Number:

SN74AHC1G08DBVR

Manufacturer:

TEXAS INSTRUMENTS

Date Code:

0636/0444

RoHS:

RoHS Compliant

MSL:

COO:

Description:

2-Input AND Gate, Single, Low Voltage

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 3875

Selling Unit: Each

Quantity	Price (ex VAT)
1+	0.26
10+
50+
100+

3875 in stock

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

The SN74AHC1G08DBVR is a single 2-input AND gate manufactured by TEXAS INSTRUMENTS. This logic gate performs a logical AND operation on its two input signals, providing a high output only when both inputs are high. The device operates at low voltage and is supplied in a SOT-23-5 package for surface mount assembly.

Key Features

Single 2-Input AND Gate
AHC Logic Family
Low Voltage Operation
SOT-23-5 Package

Applications

This AND gate is commonly used in digital systems for implementing boolean logic functions. Its small size and low voltage operation make it suitable for portable and battery-powered devices. It can be integrated into various circuits requiring logical conjunction.

Data Processing
Signal Gating
Control Logic
