SN74LS138N – MOTOROLA

Part Number:

SN74LS138N

Manufacturer:

MOTOROLA

Date Code:

1994

RoHS:

Non-RoHS

MSL:

Not Applicable

COO:

MEXICO

Description:

1 x 3:8 Decoder/Demultiplexer, 16‑PDIP Package

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 104

Selling Unit: Each

Quantity	Price (ex VAT)
1+	0.61
10+
50+
100+

104 in stock

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

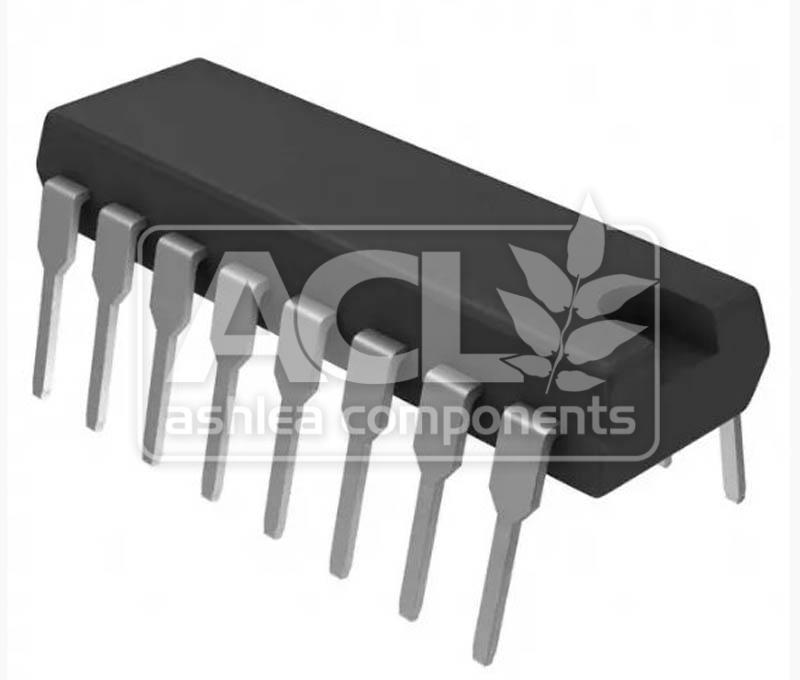

The SN74LS138N is a 3-to-8 line decoder/demultiplexer manufactured by MOTOROLA. This device accepts three binary address inputs and, based on these inputs, activates one of eight output lines. It is supplied in a 16-pin Plastic Dual In-Line Package (PDIP).

Key Features

3-to-8 Line Decoding
Low Power Schottky TTL
Multiple Enable Inputs
Fan-out of 10 LS-TTL Loads

Applications

This decoder/demultiplexer is commonly utilized in digital systems for address decoding, memory selection, and data routing. It is suitable for various applications requiring selection of one of several outputs based on a binary input address.

Memory Address Decoding
Data Routing
Logic Function Generation
