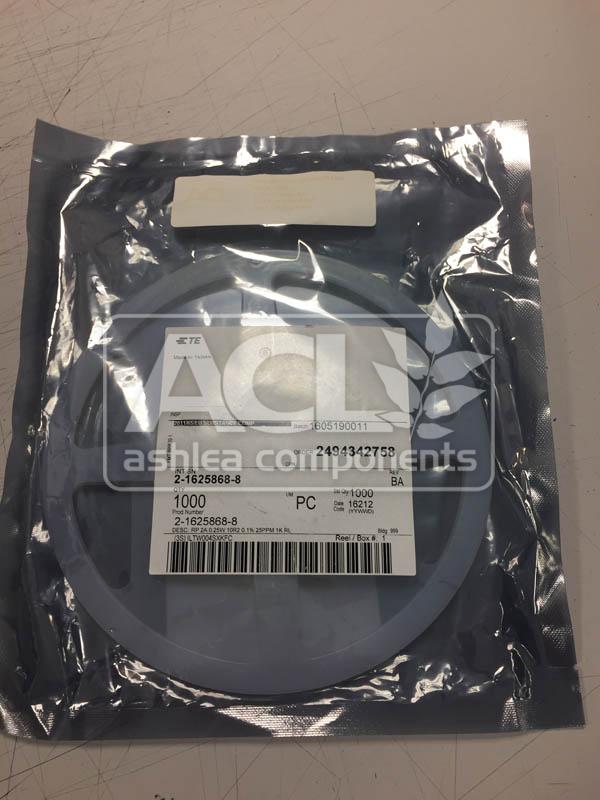

RP73PF2A10R2BTDF – TE CONNECTIVITY
10.2 Ω ±0.1% Resistor
Stock Quantity: 1000
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.15 |
| 10+ | |
| 50+ | |
| 100+ |
1000 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The TE Connectivity RP73PF2A10R2BTDF is a high-precision 0.1% tolerance thin-film surface-mount resistor, crucial for applications demanding minimal deviation from nominal resistance values. Its 25 ppm/°C temperature coefficient ensures stable performance across a wide operating range of -55°C to +155°C, a critical factor in aerospace and automotive environments where thermal cycling is prevalent. While its 250mW power rating is substantial for its 0805 (2012 metric) footprint, designers must carefully manage power dissipation to avoid exceeding the component’s thermal limits, especially in densely packed high-power density circuits where heat sinking might be constrained.
Key Features
- Resistance: 10.2 Ohms
- Tolerance: ±0.1%
- Temperature Coefficient: ±25 ppm/°C
- Power Rating: 250 mW (1/4 W)
- Voltage Rating: 150 V
- Dimensions: 2 mm x 1.25 mm x 0.55 mm (0805/2012)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Precision voltage division in analog signal conditioning circuits.
- Current sensing in high-accuracy power supply regulation loops.
- Reference element in data acquisition system front-ends.
- Impedance matching in sensitive sensor interfaces.
