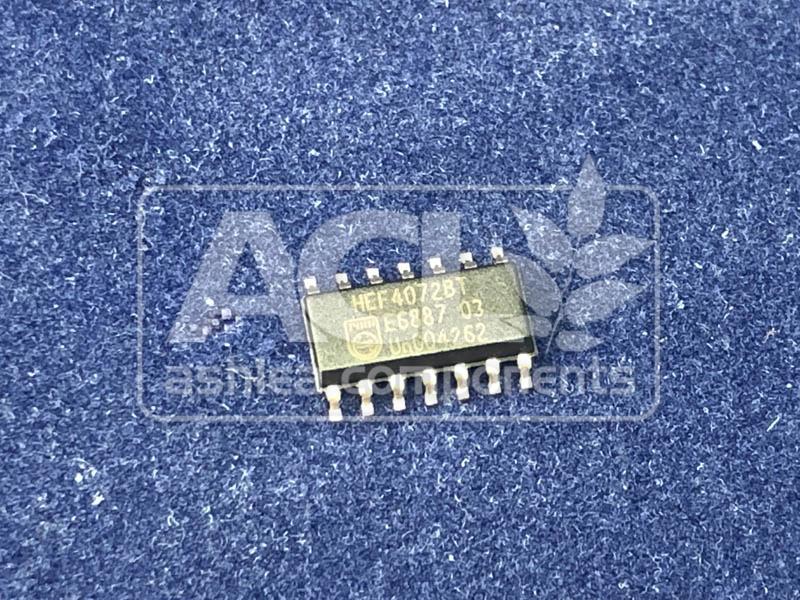

HEF4072BT – PHILIPS
Dual 4-Input OR Gate, SO14 Package
Stock Quantity: 353
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.45 |
| 10+ | |
| 50+ | |
| 100+ |
353 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The Nexperia HEF4072BT is a dual 4-input OR gate IC from the HEF4000 CMOS logic family, designed for robust digital signal integration. Its primary function is to implement complex combinatorial logic, outputting a high state only when any of its four inputs are high. A critical design consideration for this device, as with most CMOS logic operating at higher supply voltages (up to 15.5V), is managing input capacitance and switching speed to avoid excessive power dissipation and potential latch-up, especially in high-speed switching applications where propagation delays of 25 ns are acceptable.
Key Features
- Dual 4-Input OR Gate Configuration
- HEF4000 CMOS Logic Family
- Wide Operating Supply Voltage: 3 V to 15.5 V
- Propagation Delay: 25 ns (typical)
- Operating Temperature Range: -40°C to +85°C
- SOIC-14 Package (8.75mm x 4mm x 1.45mm)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Implementing combinatorial logic in industrial control systems
- Signal gating and selection in embedded microcontrollers
- Alarm and status indication logic circuits
- Basic decision-making elements in battery-powered devices
