GMA-1B-045-DJ – LEMO

Overview

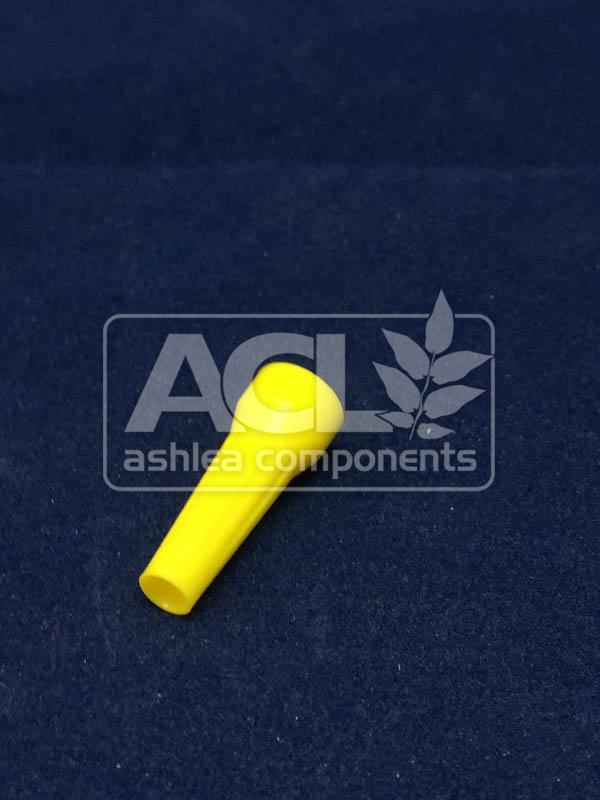

The LEMO GMA.1B.045.DJ is a critical accessory designed to provide robust strain relief for LEMO 1B series circular connectors, specifically the 1E, 1K, 1L, and 1S variants. Its primary function is to prevent mechanical stress on the cable termination within the connector housing, thereby safeguarding signal integrity and ensuring long-term operational reliability. A key design consideration for such strain reliefs is the balance between flexibility for ease of installation and sufficient rigidity to effectively absorb tensile forces; over-flexibility can compromise its protective function, while excessive stiffness might hinder proper seating or introduce stress at the cable jacket interface, a trade-off expertly managed in this TPU component.

Key Features

• Accessory Type: Strain Relief
• Material: Thermoplastic Polyurethane (TPU)
• Color: Yellow
• Series Compatibility: 1B (1E, 1K, 1L, 1S)
• Form Factor: Designed for LEMO 1B Series Connectors
• Part Status: Active

Applications

The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.

• Cable management in portable test and measurement equipment
• Securing power and signal cables in industrial automation environments
• Strain mitigation for sensor interconnects in harsh outdoor conditions
• Ensuring connector durability in vibration-prone aerospace applications
