GMA-1B-035-DG – LEMO

Overview

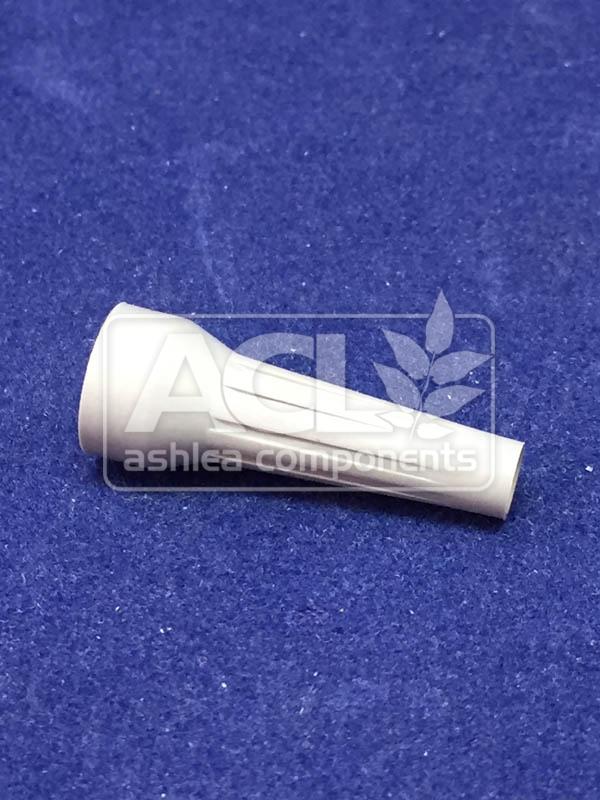

The LEMO GMA.1B.035.DG is a critical accessory designed to provide robust strain relief for LEMO 1B, 1D, and 1S series circular connectors. Its primary function is to secure the cable jacket, preventing mechanical stress from reaching the internal solder or crimp connections, thereby ensuring signal integrity and connector longevity. A key design consideration for such strain reliefs is the balance between flexibility for ease of assembly and sufficient rigidity to withstand significant pull forces; overly flexible materials can compromise protection, while excessively rigid ones may introduce stress points. This thermoplastic polyurethane (TPU) component is engineered for demanding environments where reliable cable termination is paramount.

Key Features

• Accessory Type: Strain Relief
• For Use With/Related Products: 1B, 1D, 1S Series Connectors
• Material: Thermoplastic Polyurethane (TPU)
• Color: Gray
• Series: 1B
• Connector Shell Size Compatibility: Not Applicable (Accessory)

Applications

The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.

• Securing cable assemblies in portable medical diagnostic equipment.
• Protecting power and signal connections in industrial automation control systems.
• Ensuring cable integrity in aerospace and defense communication interfaces.
• Providing strain relief for sensor interconnects in harsh environmental monitoring units.
