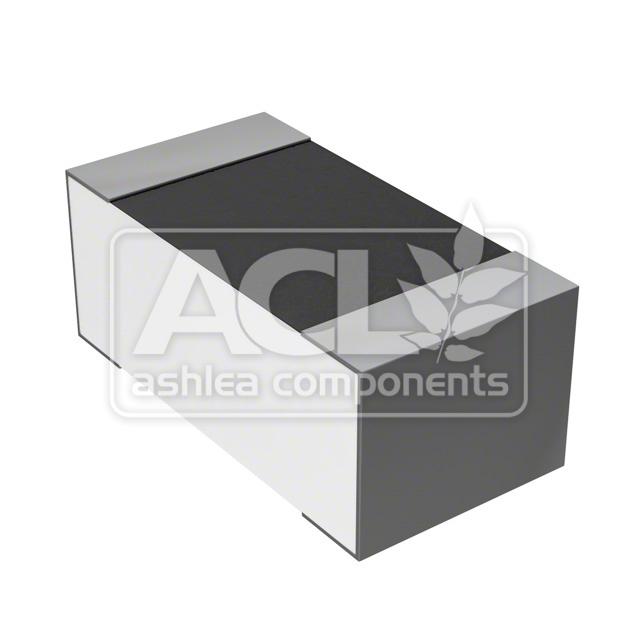

CPF0603B102RE1 – TE CONNECTIVITY
102 Ω Resistor: 0603, ±0.1%, 0.063W, Thin Film chip resistor.
Stock Quantity: 1000
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.29 |
| 10+ | |
| 50+ | |
| 100+ |
1000 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The TE Connectivity CPF0603B102RE1 is a high-stability, 0.1% tolerance thin-film surface-mount resistor designed for precision applications. Its critical operational characteristic lies in its low temperature coefficient of 25 PPM/°C, ensuring minimal drift across its broad operating range of -55°C to +155°C. A key design consideration for engineers is the trade-off between its compact 0603 footprint and its limited 62.5mW power rating; careful thermal management is essential to prevent derating and maintain accuracy in higher-power circuits.
Key Features
- Resistance: 102 Ohms
- Tolerance: 0.1%
- Temperature Coefficient: 25 PPM/°C
- Power Rating: 62.5 mW (1/16 W)
- Operating Temperature Range: -55°C to +155°C
- Dimensions: 1.55 mm (L) x 0.8 mm (W) x 0.45 mm (H)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Precision current sensing in battery management systems
- Voltage division in analog signal conditioning circuits
- Reference voltage generation in data acquisition front-ends
- Stable biasing for sensitive optical sensor arrays
