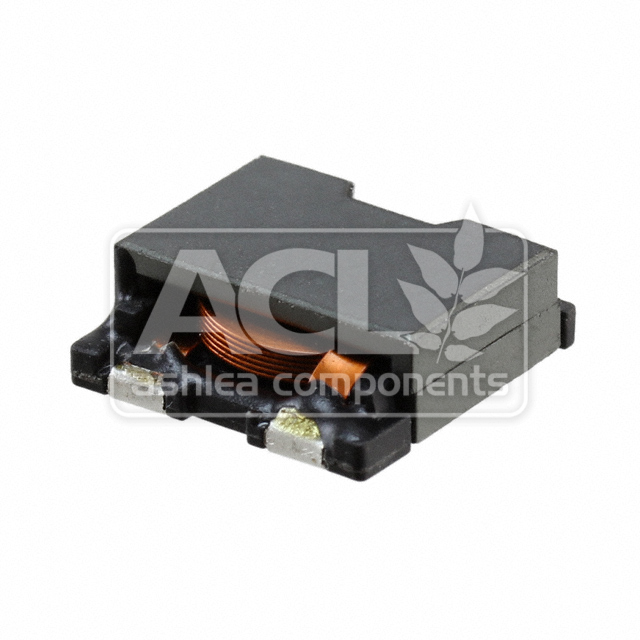

CDEP134NP-4R8MC – TBC
4.8 µH Shielded Drum Core, Wirewound Inductor 7.5 A 12mOhm Max Nonstandard
Stock Quantity: 99
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 1.65 |
| 10+ | |
| 50+ | |
| 100+ |
99 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The Sumida America Components Inc. CDEP134NP-4R8MC is a shielded, wirewound drum core inductor designed for efficient energy storage and filtering in power conversion circuits. Its critical operational characteristic is the robust 7.5A current handling capability, enabling it to manage significant current demands without saturation. A key design consideration for this component is balancing its high current density with the potential for increased parasitic capacitance at higher frequencies, which can impact filter performance if not properly accounted for in the overall circuit design.
Key Features
- Inductance: 4.8 µH (±20%)
- Rated Current: 7.5 A
- Saturation Current (Isat): 9.3 A
- DC Resistance (DCR): 12 mOhm Max
- Shielding: Shielded
- Dimensions: 13.50mm x 13.50mm x 5.00mm (L x W x H)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- DC-DC converter output filtering for high-current power rails
- Input filtering in switched-mode power supplies (SMPS)
- Buck converter energy storage elements
- Power line filtering in automotive electronics
