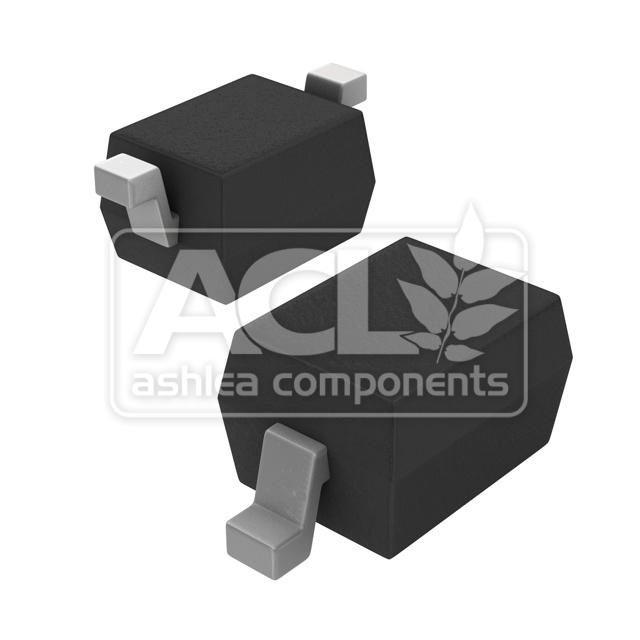

BAP64-03,115 – NXP

Part Number:

BAP64-03,115

Manufacturer:

NXP

Date Code:

RoHS:

RoHS Compliant

MSL:

COO:

CHINA

Description:

RF PIN Diode, 175V, 100mA, 500mW, SOD-323.

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 0

GET QUOTE

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

The BAP64-03,115 is a silicon PIN diode manufactured by NXP Semiconductors. This radio frequency (RF) diode is designed for switching and attenuation applications. It features a reverse voltage rating of 175V and a forward current capability of 100mA, with a power dissipation of 500mW. The component is supplied in a compact SOD-323 surface-mount package.

Key Features

High reverse voltage: 175V
Forward current: 100mA
Power dissipation: 500mW
RF switching diode
SOD-323 package

Applications

This RF PIN diode is typically used in circuits requiring controlled impedance and signal routing. Its characteristics make it suitable for diverse electronic systems where RF signal control is needed.

RF switches
Attenuators
Phase shifters
