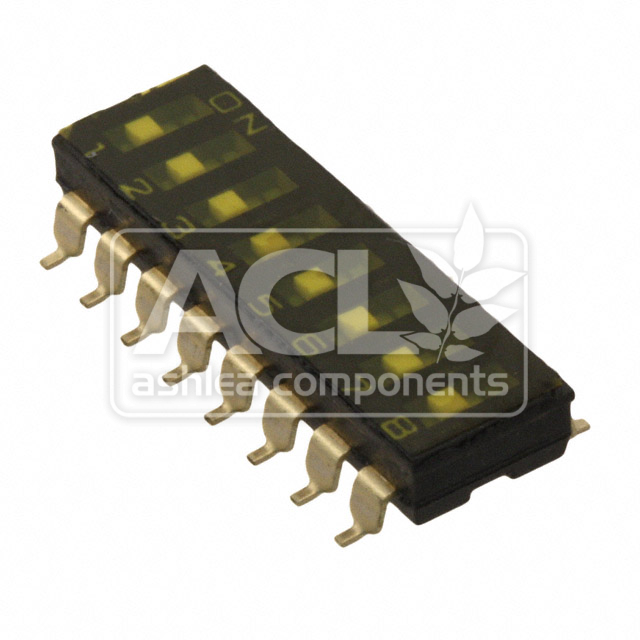

A6S-8102-H – OMRON
DIP Switch, SPST, 8-Position, SMD, Slide Actuator, 25mA, 24VDC
Stock Quantity: 15
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 1.91 |
| 10+ | |
| 50+ | |
| 100+ |
15 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The OMRON A6S-8102-H is a high-reliability 8-position low-profile slide DIP switch designed for precise digital configuration in compact PCB assemblies. Its gold-plated contacts ensure robust, low-resistance connections critical for signal integrity, even in environments prone to oxidation. A key design consideration for engineers is balancing the tactile feedback of the slide actuator with the need for a low profile, which can sometimes lead to accidental actuation if not properly guarded in high-vibration applications. This switch series excels in providing dependable, manual setting capabilities for embedded systems.
Key Features
- 8 Position Configuration
- Low Profile Slide Actuator
- 2.54 mm Terminal Pitch
- SMD/SMT Termination Style
- Gold Contact Plating
- PCB Mount, Dimensions: 19.8mm x 7.1mm x 2.4mm (L x W x H)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Configuration of embedded system boot modes and hardware settings
- Setting I/O addresses for peripheral devices
- Manual calibration adjustments in test and measurement equipment
- User-defined operational parameters in industrial control interfaces
