Transistors Guide

A transistor is a semiconductor electronic component used to amplify electrical signals or act as an electronic switch. It is one of the most important inventions in electronics because it replaced bulky vacuum tubes and made modern computers, smartphones, and nearly all digital devices possible. Transistors are typically made from semiconductor materials like silicon and contain three terminals that control how current flows through the device.

How does a transistor work?

The basic idea of a transistor is that a small input current or voltage at one terminal can control a much larger current flowing between the other two terminals. This allows transistors to act as amplifiers in analog circuits (boosting weak signals like audio) or as switches in digital circuits (turning current on and off to represent binary 1s and 0s). Because of this switching ability, transistors form the foundation of all modern digital logic systems, including processors and memory chips.

At a basic level, they act like a controllable valve: a small electrical input at one terminal determines whether current can flow between the other two terminals, and how much of it flows.

At a microscopic level, transistors rely on the movement of electrons and holes in semiconductor material. By carefully designing the structure of doped silicon regions, engineers create conditions where small electrical changes dramatically affect how charge carriers behave. This is what allows transistors to switch extremely fast and amplify signals with precision.

What does a transistor do?

A transistor can act as an amplifier or as an electronic switch. These two functions are the reason transistors are found in almost every modern electronic device.

As an amplifier, a transistor takes a small input signal and makes it larger. For example, in audio systems, a very weak signal from a microphone would normally be too small to drive a speaker. A transistor boosts this signal by using a small input at one terminal to control a much larger flow of current, producing a stronger output that can power speakers, transmit signals, or drive other circuits. This ability to amplify signals is essential in radios, communication systems, and sensors.

As an electronic switch, a transistor acts like a fast, controllable on/off gate for electricity. When a small control signal is applied, the transistor allows current to flow; when the signal is removed, it stops the current. This switching happens extremely quickly, which is why transistors are used to represent the binary “0s and 1s” in digital electronics. Every computer processor, memory chip, and digital system is built from billions of these tiny switches working together.

Transistors also help with signal processing and control in more complex ways. They can regulate voltage, generate signals, and form logic gates when combined into circuits. In power electronics, they control motors, manage battery charging, and efficiently switch power on and off in devices like chargers and power supplies.

In summary, a transistor’s job is to control, switch, and amplify electrical signals, making it one of the most important building blocks of all modern electronics—from simple household gadgets to advanced computers and communication systems.

Types of transistors

Transistors come in several main types, each designed for different ways of controlling current and voltage. The two most important broad categories are BJT (Bipolar Junction Transistors) and FET (Field-Effect Transistors), and most modern electronics are built using variations of these.

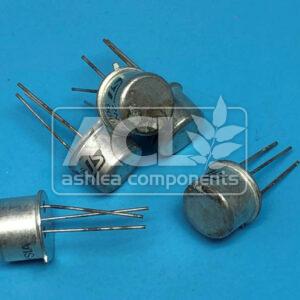

BJT (Bipolar Junction Transistor)

A BJT transistor uses a small base current to control a larger current between the collector and emitter.

BJTs come in two polarities: NPN and PNP, depending on how the semiconductor layers are arranged. NPN transistors are more commonly used because they are easier to drive in typical electronic circuits. BJTs are often used for signal amplification and switching in analog circuits, such as audio amplifiers and simple switching applications.

FET (Field Effect Transistor)

A FET (Field-Effect Transistor) controls current using a voltage applied to a gate terminal, rather than a current. This makes them more efficient because they require very little input power. The most important type of FET is the MOSFET (Metal-Oxide-Semiconductor FET), which is the dominant transistor type in modern electronics. MOSFETs are used in everything from microprocessors and memory chips to power supplies and motor controllers because they switch very quickly and handle high efficiency operation.

Within MOSFETs, there are two main types: n-channel and p-channel, depending on how charge carriers move through the device. N-channel MOSFETs are generally faster and more efficient, so they are more commonly used in power and digital circuits. P-channel MOSFETs are often used in complementary configurations.

IGBTs (Insulated Gate Bipolar Transistors)

An IGBT is a power semiconductor device that combines the easy control of a MOSFET with the high-current and high-voltage capability of a BJT. It is specifically designed for high-power switching applications, where efficiency and the ability to handle large electrical loads are important.

An IGBT has three terminals: gate, collector, and emitter. The gate is insulated (like in a MOSFET), so it requires very little input current—only voltage—to control the device. When a suitable voltage is applied to the gate, it creates a conductive channel that allows a large current to flow between the collector and emitter. This makes IGBTs relatively easy to drive compared to BJTs, while still being able to handle much higher power levels than standard MOSFETs in many applications.

Inside the device, an IGBT essentially uses a MOSFET-like input stage combined with a BJT-like output stage. The MOSFET portion provides high input impedance and fast control, while the bipolar structure allows efficient conduction of large currents with lower losses. This hybrid structure is what gives the IGBT its strength in power electronics.

IGBTs are widely used in high-voltage, high-current systems, such as:

Electric vehicle motor controllers
Industrial motor drives
Train and tram traction systems
Renewable energy inverters (solar and wind power systems)
Welding equipment and induction heating

They are especially good for medium to high switching frequencies and high power levels, typically ranging from hundreds of volts to several kilovolts and large currents.

However, IGBTs are generally slower than MOSFETs, especially in very high-frequency switching applications, so MOSFETs are preferred in low-voltage, high-speed electronics. IGBTs are chosen when power handling is more important than switching speed.

JFET (Junction Field Effect Transistor)

A JFET is a type of transistor that controls current using an electric field, similar to a MOSFET, but with a simpler internal structure. The name comes from “junction” field-effect transistor because it uses a p-n junction to control the flow of current through a semiconductor channel.

A JFET has three terminals: gate, source, and drain. Current flows between the source and drain through a narrow semiconductor channel. The key control mechanism is the gate terminal, which is reverse-biased (meaning it normally blocks current). When a voltage is applied to the gate, it creates an electric field that widens or narrows the channel. This changes how easily current can flow. A more negative gate voltage (for an n-channel JFET) shrinks the channel and reduces current, while a less negative or zero voltage allows more current to flow.

One important feature of JFETs is that the gate draws almost no current because the gate junction is reverse-biased. This makes JFETs very efficient in terms of input power and gives them very high input impedance, meaning they do not load down the previous stage of a circuit. This is especially useful in sensitive analog circuits where signal integrity is important.

JFETs are known for their low noise performance, which makes them ideal for applications like audio preamplifiers, radio receivers, and sensor circuits. Because they introduce very little electrical noise into a signal, they are often used in systems where weak signals need to be amplified cleanly.

However, JFETs are not as widely used today as MOSFETs because they are harder to integrate into modern integrated circuits and do not scale as well for high-density digital electronics. MOSFETs replaced them in most digital and power applications due to better efficiency and manufacturing advantages.

Despite this, JFETs are still valued in specialised analog applications, especially where low noise, simplicity, and stable performance are more important than speed or integration density.

Phototransistors

A phototransistor is a type of transistor that is sensitive to light instead of just electrical signals. It works much like a regular transistor, but instead of using an electrical current at the base (like a BJT), it uses light energy to control current flow. When light hits the device, it generates charge carriers inside the semiconductor, which increases the current flowing between the collector and emitter.

Most phototransistors are based on a BJT structure, but the base terminal is often left unconnected or exposed to light. When photons strike the semiconductor material, they create electron–hole pairs. These extra charge carriers effectively act like a small base current, which turns the transistor on and allows a much larger current to flow. The brighter the light, the more current flows, making phototransistors useful as light-controlled switches or sensors.

Phototransistors are much more sensitive to light than simple photodiodes because they have internal current amplification. This means a small amount of light can produce a relatively large electrical output. However, this also makes them slightly slower than photodiodes, so they are not always ideal for very high-speed optical communication.

They are widely used in applications such as light detection systems, automatic lighting controls, object counters, infrared receivers, and opto-isolators. For example, in infrared remote controls or barrier sensors, a phototransistor can detect whether a beam of light has been interrupted or received.

Overall, phototransistors are simple, low-cost, and highly sensitive light sensors that combine the principles of light detection and signal amplification in a single component, making them very useful in many everyday electronic systems.

Transistors summary

The importance of transistors cannot be overstated, as they are the foundation of all modern electronics.

Within digital systems, billions of MOSFETs are packed into microprocessors and memory chips to perform computing tasks through rapid on/off switching. In analog systems, transistors amplify weak signals in audio equipment, sensors, and communication devices. In power electronics, they efficiently control motors, regulate voltage, and manage energy in systems like chargers, electric vehicles, and renewable energy inverters.
