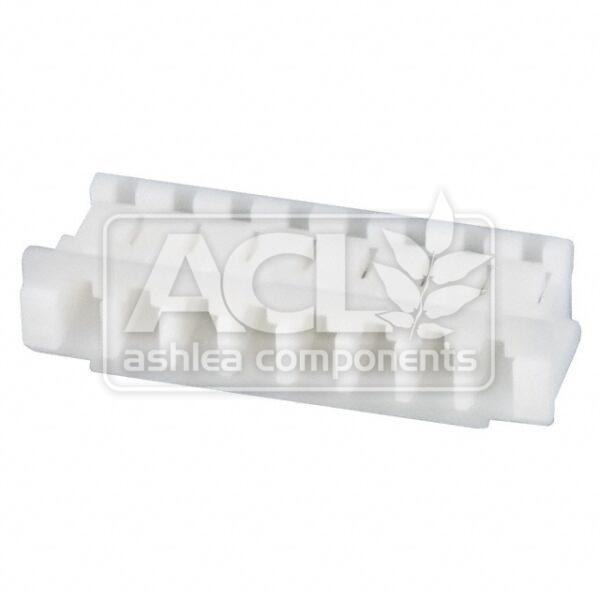

ZHR-8 – JST
Connector Housing, Receptacle, 8 Position, 1.5mm Pitch, Rectangular, Natural
Stock Quantity: 50
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.29 |
| 10+ | |
| 50+ | |
| 100+ |
50 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The JST ZHR-8 is a compact, 8-position receptacle housing designed for 1.50mm pitch crimp-style connections, offering a robust solution for signal and low-power interconnects. Its primary function is to securely encapsulate JST’s female socket contacts, providing a reliable mating interface. A critical design consideration is the trade-off between its miniature footprint, enabling high-density board layouts, and the potential for mechanical stress on individual contacts during mating/unmating cycles, necessitating careful handling and strain relief in vibration-prone environments.
Key Features
- 8 Positions
- 1.50mm (0.059″) Pitch
- Receptacle Housing Type
- Free Hanging (In-Line) Mounting
- Polyamide (PA66) Insulation Material
- Dimensions: [Specific dimensions not provided in input, but implied by pitch and position count for compact design]
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- High-density internal wiring in consumer electronics
- Signal routing for compact sensor modules
- Low-voltage power distribution in portable devices
- Interconnection for small-form-factor LED driver boards
