UDN2982A-T – ALLEGRO
Part Number:
UDN2982A-T
Manufacturer:
Date Code:
RoHS:
RoHS Compliant
MSL:
3
COO:
INDONESIA
Description:
1:1 Bipolar Power Switch/Driver, 500 mA, 18‑DIP Package
Datasheet:
Spotted a problem with product information? – let us know
ORDER NOW
Stock Quantity: 0
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Product Details:
Overview

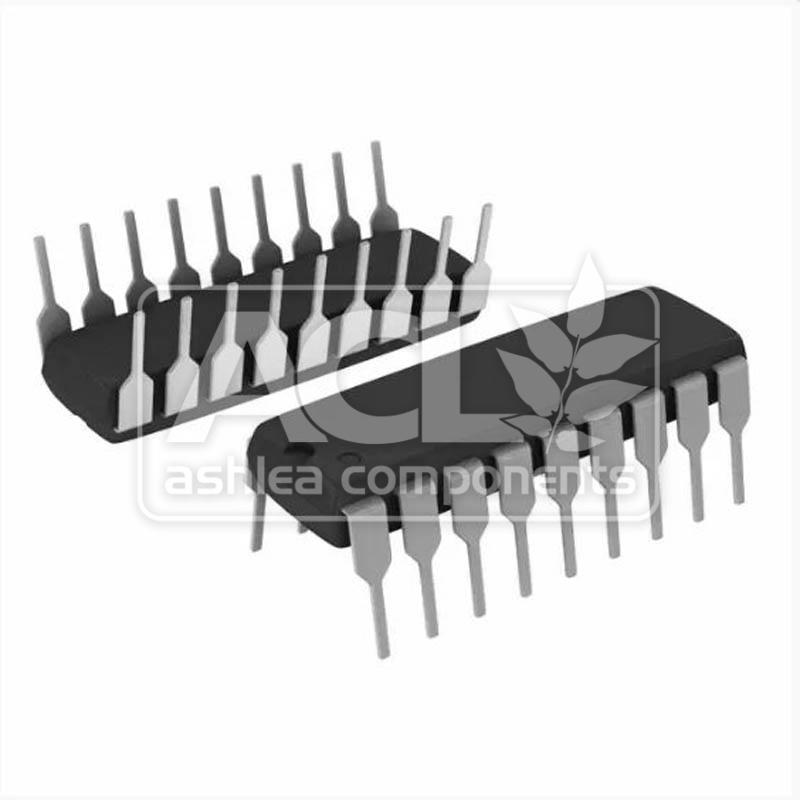

The UDN2982A-T is a bipolar power switch/driver manufactured by ALLEGRO MicroSystems. This device is designed for driving inductive loads and other high-current applications. It features eight independent channels, each capable of switching up to 500mA. The UDN2982A-T is supplied in an 18-pin Dual In-Line Package (DIP).
Key Features
- Eight independent driver channels
- 500mA output current per channel
- Bipolar transistor outputs
- Integrated suppression diodes
Applications
This power switch is commonly used in various industrial and consumer electronic systems. Its high current drive capability makes it suitable for controlling relays, solenoids, and stepper motors. The integrated diodes protect against inductive kickback, increasing reliability in demanding environments.
- Relay driving
- Solenoid control
- Stepper motor control
