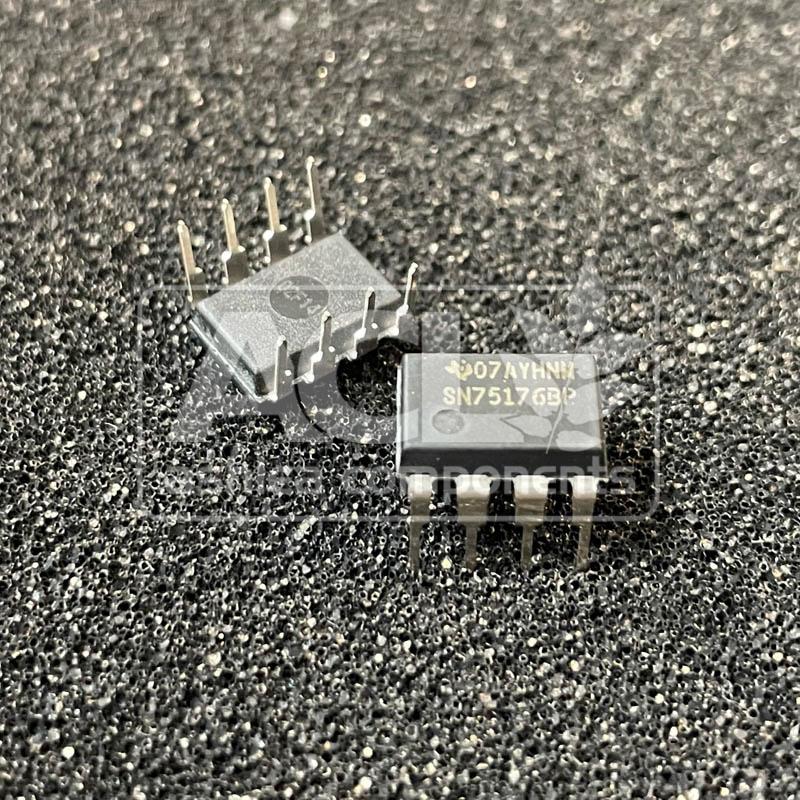

SN75176BP – TEXAS INSTRUMENTS

Part Number:

SN75176BP

Manufacturer:

TEXAS INSTRUMENTS

Date Code:

10+

RoHS:

RoHS Compliant

MSL:

COO:

MEXICO

Description:

Differential Bus Transceiver, 4.75V-5.25V, PDIP-8 Package

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 1046

Selling Unit: Each

Quantity	Price (ex VAT)
1+	0.4
10+
50+
100+

1046 in stock

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

The SN75176BP is a differential bus transceiver manufactured by Texas Instruments. This device facilitates bidirectional data communication on balanced transmission lines, operating within a supply voltage range of 4.75V to 5.25V. It is housed in an 8-pin Plastic Dual In-Line Package (PDIP-8) and is commonly used in RS-485 and RS-422 network applications.

Key Features

RS-485 and RS-422 compatibility
Half-duplex operation
Thermal shutdown protection
Driver short-circuit protection

Applications

This transceiver is designed for use in environments requiring reliable data transfer over extended distances or in noisy conditions. Its differential signaling provides enhanced noise immunity, making it suitable for various industrial and commercial applications.

Industrial control networks
Building automation systems
Point-of-sale (POS) terminals
