SMBJ85A – LITTELFUSE
Part Number:
SMBJ85A
Manufacturer:
Date Code:
RoHS:
MSL:
COO:
Description:
137V 4.4A TVS Diode, SMD, DO-214AA (SMBJ).
Datasheet:
Spotted a problem with product information? – let us know
ORDER NOW
Stock Quantity: 50
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 2.92 |
| 10+ | |
| 50+ | |
| 100+ |
50 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Product Details:
Overview

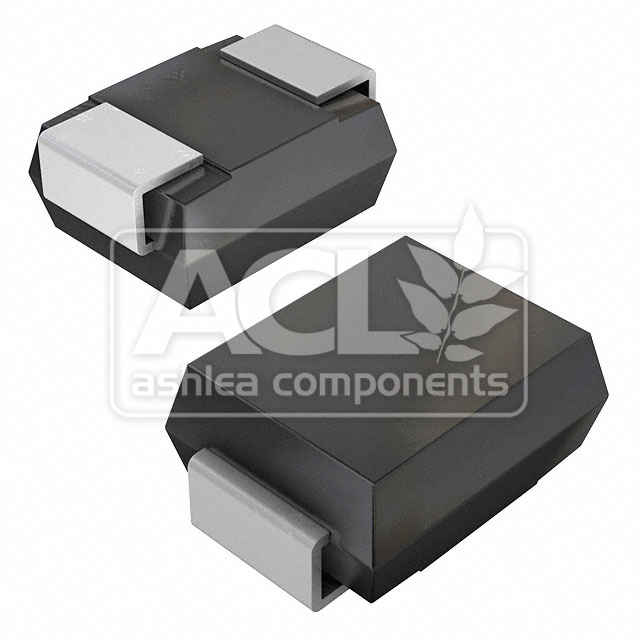

The SMBJ85A is a Transient Voltage Suppressor (TVS) diode manufactured by LITTELFUSE. This component provides overvoltage protection for sensitive electronic circuits. It is designed to clamp voltage spikes and protect against transient events. The SMBJ85A features a reverse standoff voltage of 85V and a peak pulse current of 4.4A. It is packaged in a surface-mount DO-214AA (SMBJ) package.
Key Features
- Reverse Standoff Voltage: 85V
- Peak Pulse Current: 4.4A
- Surface Mount DO-214AA Package
- Unidirectional Configuration
Applications
This TVS diode is commonly used to safeguard electronic equipment from voltage transients induced by inductive load switching, electrostatic discharge (ESD), and lightning strikes. Its compact size and robust protection make it suitable for various applications.
- I/O Protection
- Power Supply Protection
- Data Line Protection
