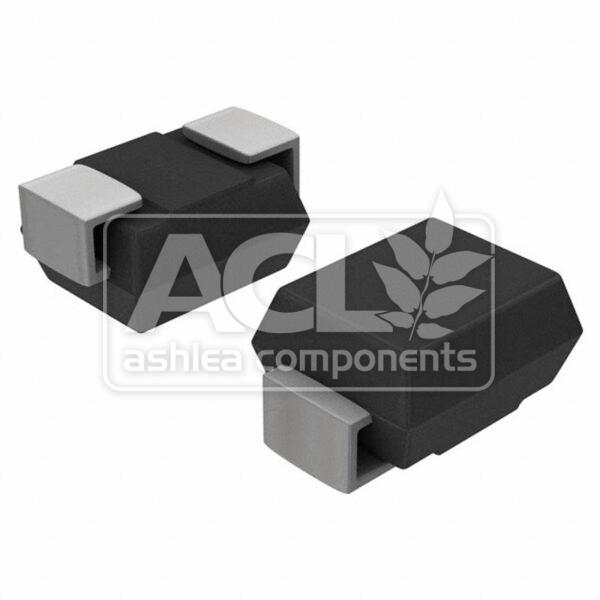

P6SMB56AT3G – LITTELFUSE
Part Number:
P6SMB56AT3G
Manufacturer:
Date Code:
17
RoHS:
RoHS Compliant
MSL:
1
COO:
VIETNAM
Description:
77V, 7.8A Ipp TVS Diode, SMB Package, Surface Mount, Transient Voltage Suppressor
Datasheet:
Spotted a problem with product information? – let us know
ORDER NOW
Stock Quantity: 4750
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 3.33 |
| 10+ | |
| 50+ | |
| 100+ |
4750 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Product Details:
Overview
The P6SMB56AT3G is a surface mount Transient Voltage Suppressor (TVS) diode manufactured by LITTELFUSE. This component provides overvoltage protection with a standoff voltage of 56V and a peak pulse current (Ipp) of 7.8A. It is packaged in an SMB (DO-214AA) form factor, suitable for automated assembly processes.
Key Features
- 77V Breakdown Voltage
- SMB (DO-214AA) Package
- Surface Mount Technology
- Unidirectional Configuration
Applications
This TVS diode is commonly used to protect sensitive electronic equipment from voltage transients induced by lightning, electrostatic discharge (ESD), and inductive load switching. Its compact size and surface mount design make it suitable for high-density circuit board layouts.
- I/O Protection
- Power Supply Protection
- Data Line Protection
