LM79L05-ACZ – NATIONAL SEMICONDUCTOR

Part Number:

LM79L05-ACZ

Manufacturer:

NATIONAL SEMICONDUCTOR

Date Code:

RoHS:

MSL:

COO:

Description:

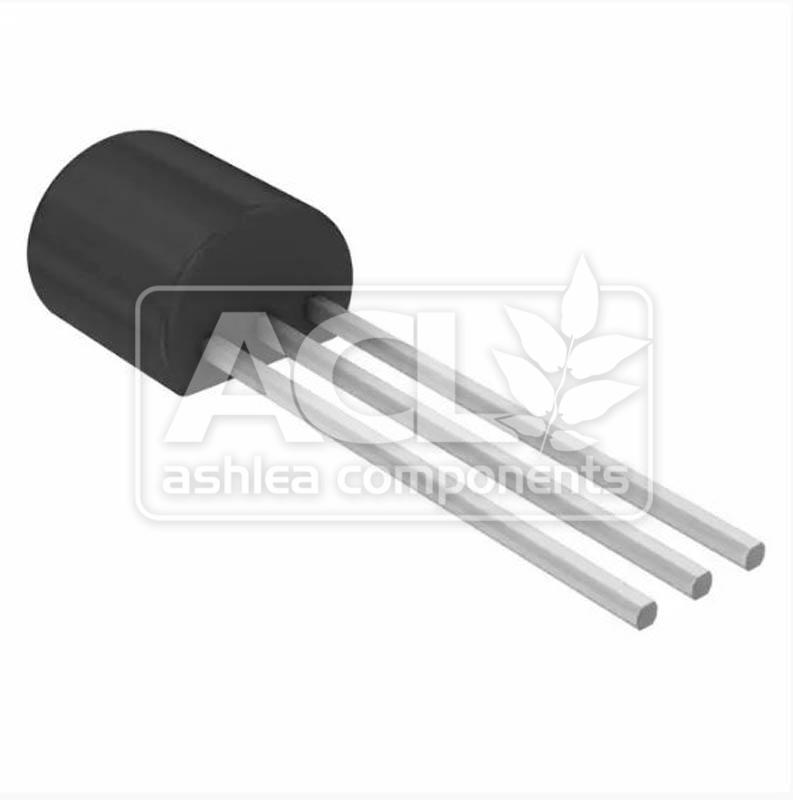

Negative 5 V 0.1 A LDO Regulator, 3‑Pin TO‑92R Package

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 771

Selling Unit: Each

Quantity	Price (ex VAT)
1+	0.12
10+
50+
100+

771 in stock

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

The LM79L05-ACZ is a fixed negative voltage regulator from NATIONAL SEMICONDUCTOR. This linear regulator delivers a stable -5V output with a maximum output current of 0.1A (100mA). It is housed in a compact 3-Pin TO-92R package, making it suitable for various low-power applications requiring a regulated negative supply.

Key Features

Fixed -5V Output Voltage
100mA Maximum Output Current
Internal Short-Circuit Protection
Thermal Overload Protection

Applications

This negative voltage regulator is commonly used in systems requiring a stable negative voltage source for analog circuits, operational amplifiers, and other sensitive electronic components. Its small size and ease of use make it suitable for a range of applications.

Negative Voltage Bias
Linear Power Supplies
Instrumentation Amplifiers
