ICL7660SCBA – HARRIS

Part Number:

ICL7660SCBA

Manufacturer:

HARRIS

Date Code:

RoHS:

MSL:

COO:

Description:

Charge Pump Regulator, Fixed ±Vin to 2Vin, 45mA, 8-SOIC (3.9mm width)

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 23

Selling Unit: Each

Quantity	Price (ex VAT)
1+	0.94
10+
50+
100+

23 in stock

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

The ICL7660SCBA is a charge pump voltage regulator manufactured by HARRIS. This device converts a positive input voltage to a corresponding negative output voltage, typically ranging from ±Vin to 2Vin. It delivers a maximum output current of 45mA and is supplied in an 8-SOIC package with a 3.9mm width.

Key Features

Voltage Conversion: Positive to Negative
Output Current: 45mA Maximum
Input Voltage Range: ±Vin to 2Vin

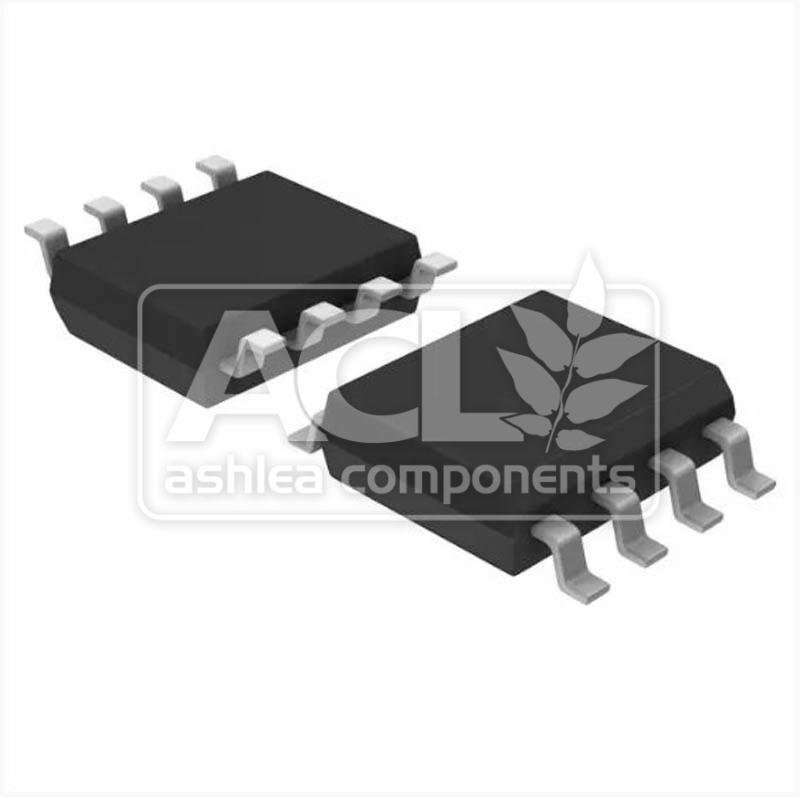

Package Type: 8-SOIC (3.9mm width)

Applications

The ICL7660SCBA charge pump regulator is commonly employed in applications requiring a negative voltage supply generated from a positive voltage source. Its compact size and efficient voltage inversion make it suitable for various electronic devices and systems.

Operational Amplifier Power Supplies
Data Acquisition Systems
LCD Bias Generation
