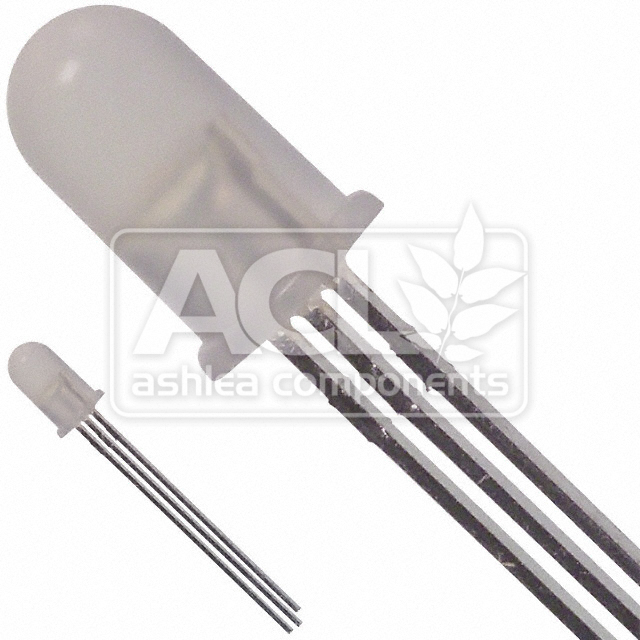

HLMP-4000 – AGILENT TECHNOLOGIES
LED, Bi-Color, Green (570nm), Red (626nm), 2.2V/1.9V, Radial, 3-Lead
Stock Quantity: 246
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 1.17 |
| 10+ | |
| 50+ | |
| 100+ |
246 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The AGILENT TECHNOLOGIES HLMP-4000 is a high-performance bi-color LED designed for robust visual indication in demanding environments. Its core functionality lies in providing distinct red and green illumination from a single package, enabling status monitoring with minimal component count. A critical design consideration for this common cathode device is managing the forward voltage differential between the red and green emitters; ensuring consistent brightness across both colors necessitates careful current limiting to prevent premature degradation of the lower Vf emitter when driven from a common current source. This ensures reliable operational feedback.
Key Features
- Common Cathode Configuration
- Red Emitter: 626 nm, 1.9 Vf @ 10 mA
- Green Emitter: 570 nm, 2.2 Vf @ 10 mA
- Luminous Intensity: 2.1 mcd (Red), 4.2 mcd (Green)
- T-1 3/4 (5 mm) Through-Hole Package
- Operating Temperature: -20°C to +100°C
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Status indication in industrial control panels
- Fault signaling in automotive diagnostic equipment
- Power state visualization in consumer electronics
- Indicator lights for telecommunications infrastructure
