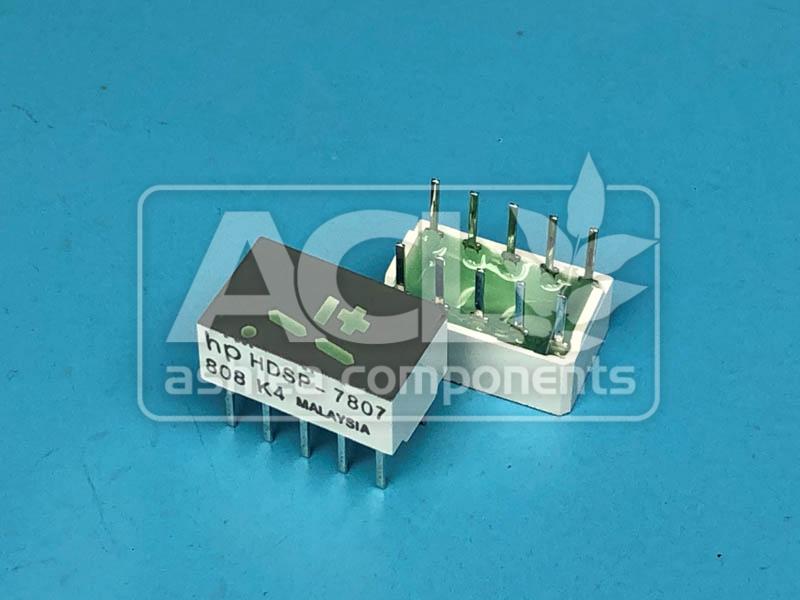

HDSP-7807 – AGILENT TECHNOLOGIES
0.3″ Seven‑Segment LED Display, Overflow/Float, Green, 10‑DIP
Stock Quantity: 72
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 2.26 |
| 10+ | |
| 50+ | |
| 100+ |
72 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The Agilent Technologies HDSP-7807 is a high-performance, single-digit, 7-segment LED display designed for clear visual indication in demanding electronic systems. Its common anode configuration simplifies driving circuitry, a critical consideration in space-constrained designs. While the 20 mA forward current and 2.1 V forward voltage offer efficient illumination, engineers must carefully manage power dissipation, especially in high-density arrays, to prevent thermal runaway and maintain consistent luminous intensity across the device’s broad -40°C to +100°C operating temperature range.
Key Features
- Single Digit, 7-Segment Numeric Display
- Green Illumination Color (566 nm wavelength)
- Common Anode Configuration
- Character Dimensions: 4.19 mm x 7.62 mm
- Module Dimensions: 7.62 mm (W) x 12.7 mm (H) x 6.09 mm (T)
- Through-Hole Mounting Style
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Industrial control panel readouts
- Test and measurement equipment displays
- Medical device status indicators
- Automotive dashboard instrumentation
