ELLCTV4R7N – PANASONIC

Part Number:

ELLCTV4R7N

Manufacturer:

PANASONIC

Date Code:

RoHS:

RoHS Compliant

MSL:

–

COO:

Description:

Shielded Power Choke, SMD, 4.7 µH, 5200 mA

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 0

GET QUOTE

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

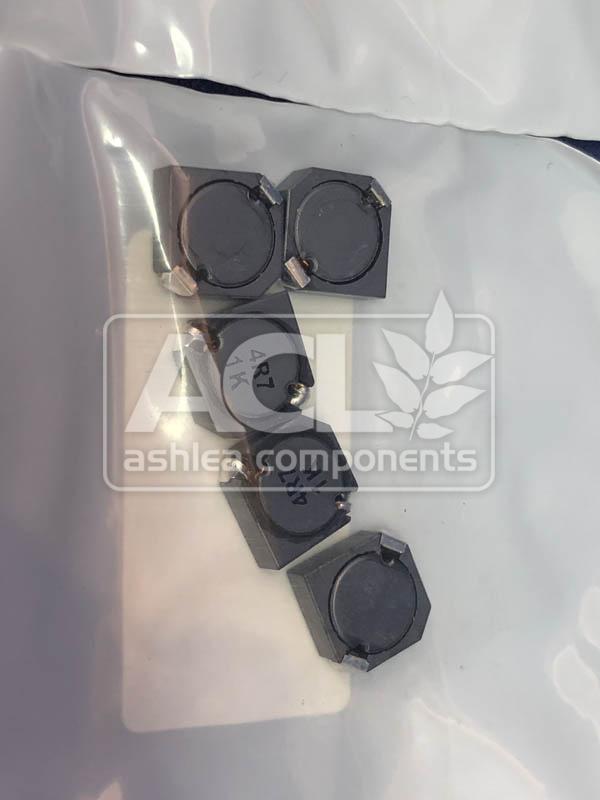

The ELLCTV4R7N is a surface mount shielded power inductor manufactured by Panasonic. This component provides 4.7 µH inductance and supports a maximum current of 5200 mA. It is designed for power supply applications requiring efficient energy storage and filtering in a compact SMD package.

Key Features

Inductance: 4.7 µH
Maximum Current: 5.2 A
Shielded Construction
Surface Mount Device (SMD)

Applications

This power choke is commonly used in various electronic circuits to filter noise, regulate voltage, and store energy. Its compact size and high current capability make it suitable for space-constrained designs.

DC-DC Converters
Power Amplifiers
Switching Regulators
