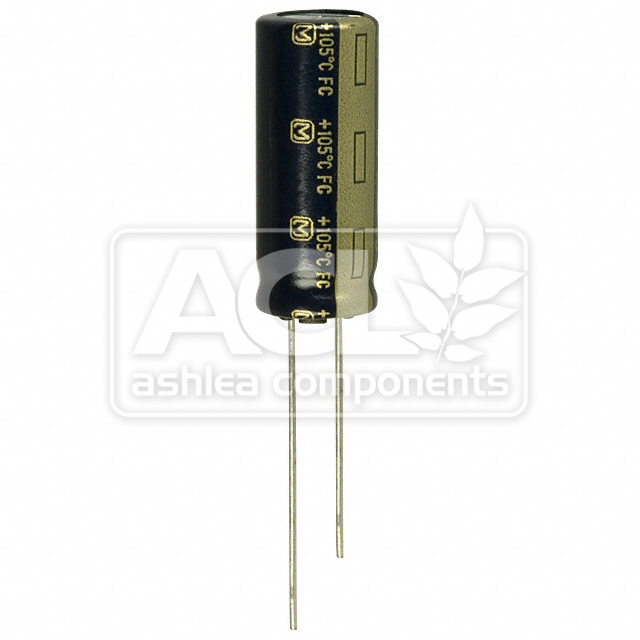

EEU-FC1J221 – PANASONIC
220 µF Aluminum Electrolytic Capacitor, 20%, 63 V, Radial, Through-Hole
Stock Quantity: 14
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.6 |
| 10+ | |
| 50+ | |
| 100+ |
14 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The Panasonic EEU-FC1J221 is a 220 µF, 63 V radial aluminum electrolytic capacitor engineered for robust performance in demanding applications. Its primary function is energy storage and filtering, critical for smoothing DC voltage rails and decoupling transient current demands. A key design consideration for this component, and indeed many electrolytic capacitors, is the trade-off between volumetric efficiency and equivalent series resistance (ESR); while offering substantial capacitance in a compact form factor, its ESR of 130 mOhms at 100 kHz necessitates careful thermal management in high-ripple current scenarios to prevent premature aging beyond its rated 3000 hours at 105°C.
Key Features
- Capacitance: 220 µF
- Voltage Rating: 63 V
- Tolerance: ±20%
- Ripple Current: 1.05 A @ 100 kHz
- Operating Temperature: -55°C to 105°C
- Dimensions: 10.00mm (Dia) x 25.00mm (H)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Automotive power supply filtering and decoupling
- High-frequency switching power supply output stages
- Audio amplifier DC blocking and ripple reduction
- Industrial control system voltage stabilization
