EDG110S – ECE

Part Number:

EDG110S

Manufacturer:

ECE

Date Code:

UNKNOWN

RoHS:

RoHS Unknown

MSL:

COO:

Description:

DIP Switch, 10-Pole, Gold-Plated, 24VDC, 0.025A, 20 Pins.

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 131

Selling Unit: Each

Quantity	Price (ex VAT)
1+	1.59
10+
50+
100+

131 in stock

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

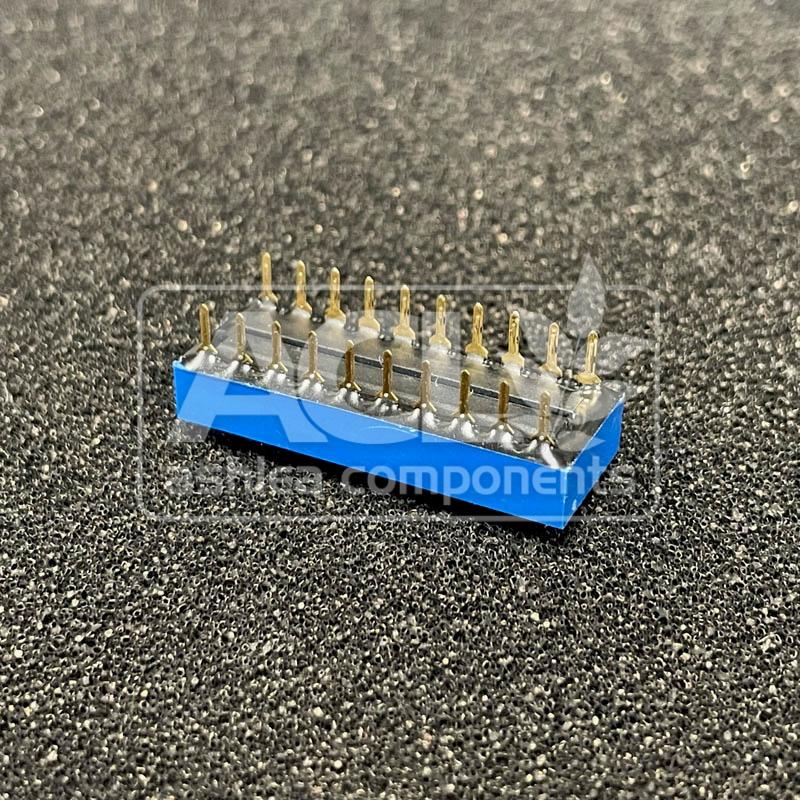

The EDG110S is a 10-pole DIP switch manufactured by ECE. This component facilitates circuit configuration through manual switching of its ten individual poles. Featuring gold-plated contacts for enhanced conductivity and corrosion resistance, it is rated for 24VDC operation at 0.025A. The EDG110S is packaged in a DIP (Dual In-Line Package) with 20 pins for secure mounting on printed circuit boards.

Key Features

10 Independent Poles
Gold-Plated Contacts
24VDC Operating Voltage
0.025A Current Rating

Applications

This DIP switch is commonly used in electronic devices requiring user-configurable settings. Its reliable switching and compact design make it suitable for a variety of applications where on-board adjustments are needed.

Address Selection
Logic Configuration
Calibration Settings
