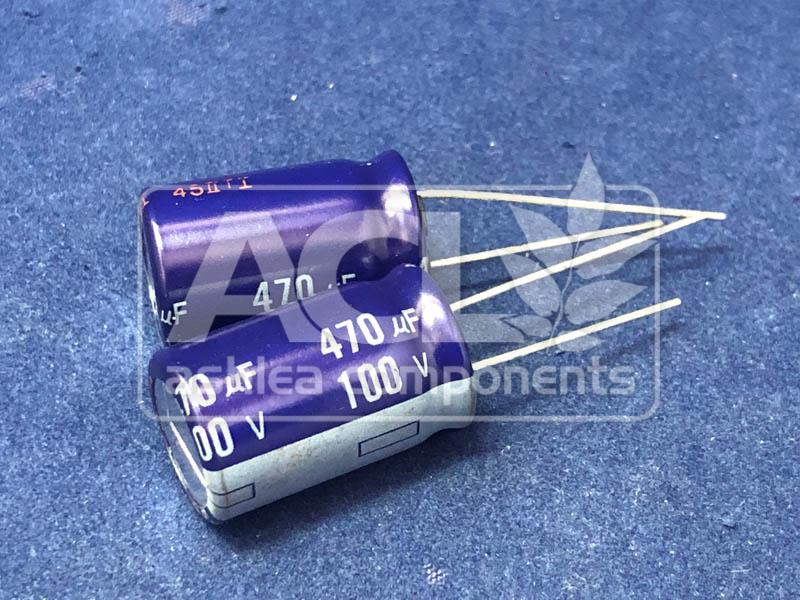

ECA2AM471 – PANASONIC
470μF 100V Electrolytic Capacitor, Through-Hole, Panasonic
Stock Quantity: 30
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.91 |
| 10+ | |
| 50+ | |
| 100+ |
30 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The Panasonic ECA2AM471 is a high-performance, automotive-grade polarized aluminum electrolytic capacitor from the M-A series, engineered for demanding applications requiring exceptional ripple current handling and extended operational lifespan. Its primary function is energy storage and filtering, particularly critical in power supply decoupling and smoothing circuits. A key design consideration for polarized capacitors like the ECA2AM471 is maintaining correct polarity during installation; reverse voltage application can lead to catastrophic failure, a trade-off for their high volumetric efficiency and low equivalent series resistance (ESR) characteristics.
Key Features
- Capacitance: 470µF
- Voltage Rating: 100VDC
- Ripple Current: 900mA @ 85°C
- Operating Temperature Range: -40°C to 85°C
- Endurance: 2000 hours @ 85°C
- Package: Radial Leaded, 16mm Diameter x 25mm Height, 7.5mm Lead Spacing
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- High-frequency power supply filtering in automotive ECUs
- Bulk capacitance for DC-DC converters in electric vehicle powertrains
- Smoothing of rectified AC in industrial motor control circuits
- Decoupling for high-power audio amplifiers
