DS4E-S-DC12V – NAIS
Relay, 4PDT, Through Hole, 2A, 12VDC
Stock Quantity: 14
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 10.49 |
| 10+ | |
| 50+ | |
| 100+ |
14 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview

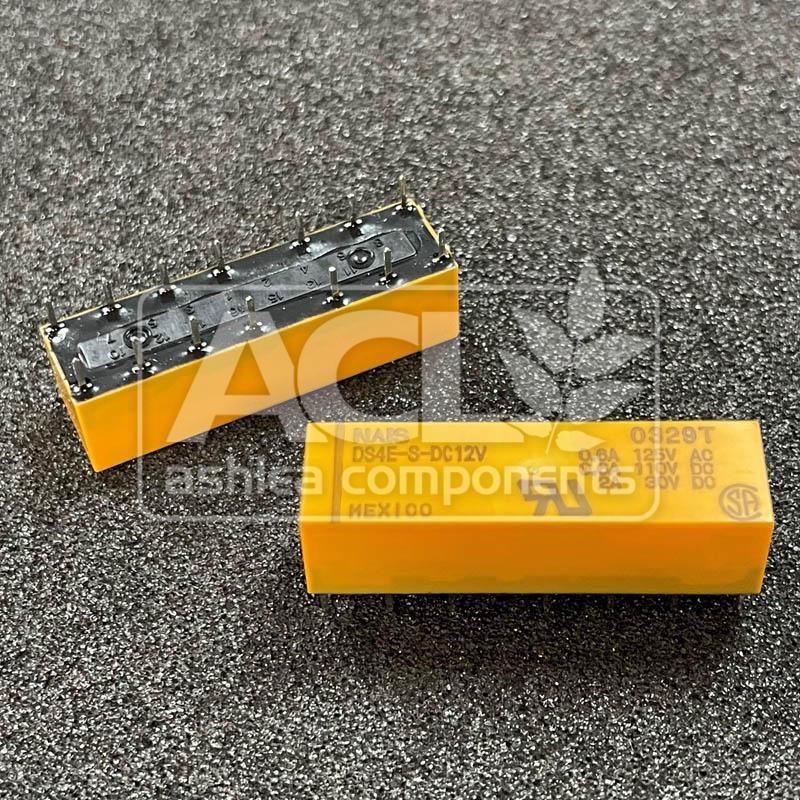

The Panasonic Industrial Devices DS4E-S-DC12V is a miniature, low-profile PCB relay designed for high-density switching applications. Its 4 Form C (4PDT) contact configuration offers exceptional flexibility, enabling complex signal routing and isolation. A critical design consideration for latching relays like the DS4E-S-DC12V is managing coil drive current to ensure reliable actuation without overheating, especially in thermally constrained environments where minimizing power dissipation (200 mW) is paramount for long-term operational integrity.
Key Features
- Coil Voltage: 12 VDC
- Contact Form: 4PDT (4 Form C)
- Contact Current Rating: 2 A
- Maximum Switching Current: 3 A
- Coil Type: Latching
- Dimensions: 29mm x 12.5mm x 10mm (L x W x H)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Automated test equipment (ATE) signal matrix switching
- Bi-directional data line isolation in communication modules
- Power sequencing for multiple voltage rails in industrial controllers
- Cross-point switching in broadcast video routing systems
