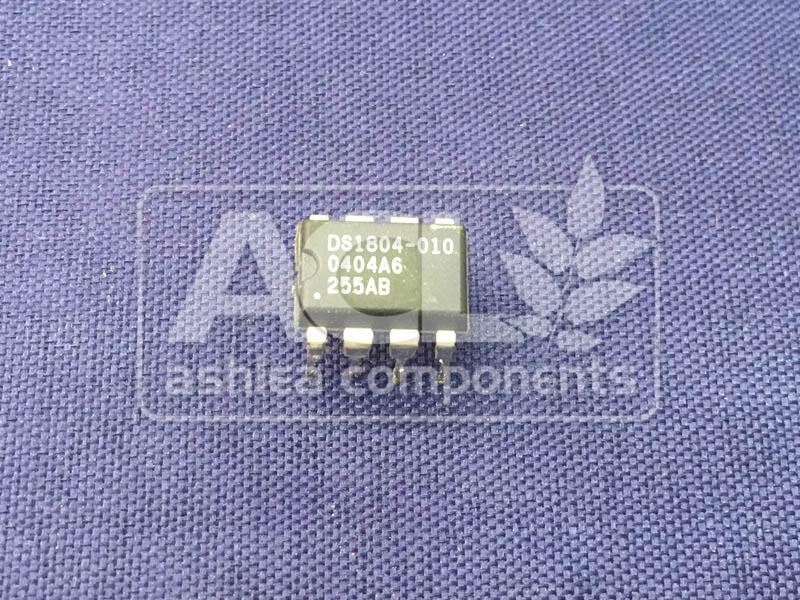

DS1804-010 – DALLAS

Part Number:

DS1804-010

Manufacturer:

DALLAS

Date Code:

RoHS:

Non-RoHS

MSL:

COO:

PHILIPPINES

Description:

10 kΩ Digital Potentiometer, 100 Taps, 8-DIP Package

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 0

GET QUOTE

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

The DS1804-010 is a 10 kΩ digital potentiometer manufactured by DALLAS. This device provides digitally controlled resistance adjustment with 100 discrete tap points. It is housed in an 8-pin DIP package, facilitating easy integration into through-hole circuit board designs. The digital control interface allows for precise resistance setting via external logic.

Key Features

10 kΩ Total Resistance
100 Tap Positions
8-DIP Package
Digital Control Interface

Applications

This digital potentiometer is commonly used in applications requiring adjustable resistance values controlled by a digital system. It is suitable for environments where precise and repeatable resistance settings are necessary. The DIP package allows for prototyping and development on breadboards.

Volume Control
Calibration Circuits
Adjustable Power Supplies
