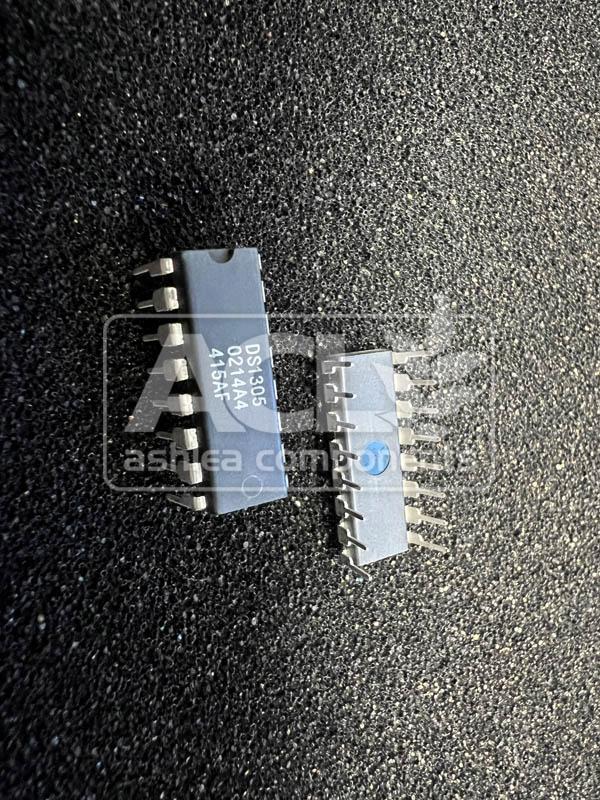

DS1305 – MAXIM INTEGRATED

The Maxim Integrated DS1305 is a serially accessed real-time clock (RTC) with a built-in crystal oscillator and trickle-charge capability. It provides a complete time-of-day and calendar function, including seconds, minutes, hours, day, date, month, and year, with automatic leap-year compensation valid up to 2100. The device communicates via a 3-wire serial interface (SPI), simplifying integration with microcontrollers. Its key advantage lies in its low power consumption and integrated crystal, minimizing external components. The open-drain output pin provides a 1.8V Voltage Rating (OUTPUT ONLY 1.8V) and a sinking Current Rating (OUTPUT ONLY 20mA) for interrupt or square-wave generation. Typically supplied in a 20-pin small outline integrated circuit (SOIC) Package Type, the DS1305 boasts an Operating Temperature Range of –40°C to +85°C, making it suitable for industrial and embedded applications requiring accurate timekeeping in harsh environments. Common use cases include data loggers, industrial control systems, and metering applications where precise timing and battery backup are crucial.
