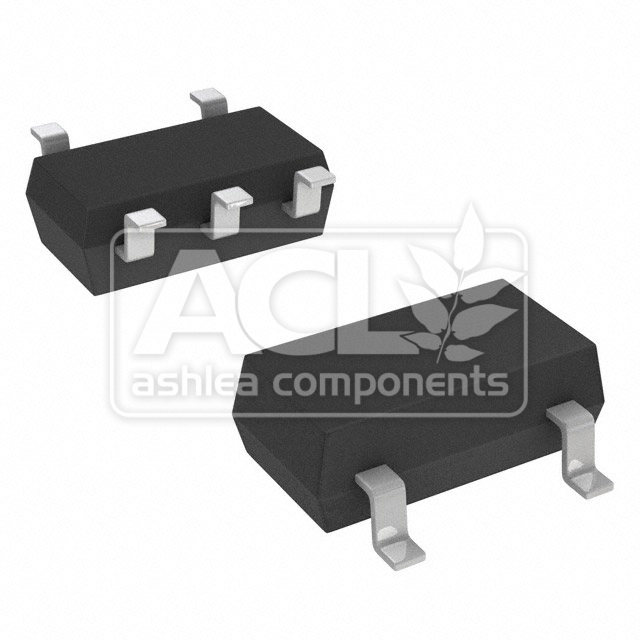

DMC201A00R – PANASONIC
BJT Transistor Array, 2 NPN, 20V, 500mA, 150MHz, 300mW, Mini5-G3-B, SMT
Stock Quantity: 280
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.24 |
| 10+ | |
| 50+ | |
| 100+ |
280 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The DMC201A00R is a Bipolar Junction Transistor (BJT) array manufactured by Panasonic. This device integrates two NPN transistors within a single Mini5-G3-B surface-mount package. Each transistor features a collector-emitter voltage rating of 20V and a collector current of 500mA. The array exhibits a transition frequency of 150MHz and a total power dissipation of 300mW.
Key Features
- Dual NPN transistor configuration
- 20V Collector-Emitter Voltage (Vceo)
- 500mA Collector Current (Ic)
- 150MHz Transition Frequency (fT)
- Mini5-G3-B SMT Package
Applications
This transistor array is commonly used in various electronic circuits requiring multiple switching or amplification stages. Its compact size and integrated design make it suitable for space-constrained applications. It is designed for surface mount assembly.
- Digital Logic Circuits
- Small Signal Amplification
- Switching Circuits
- Driver Circuits
