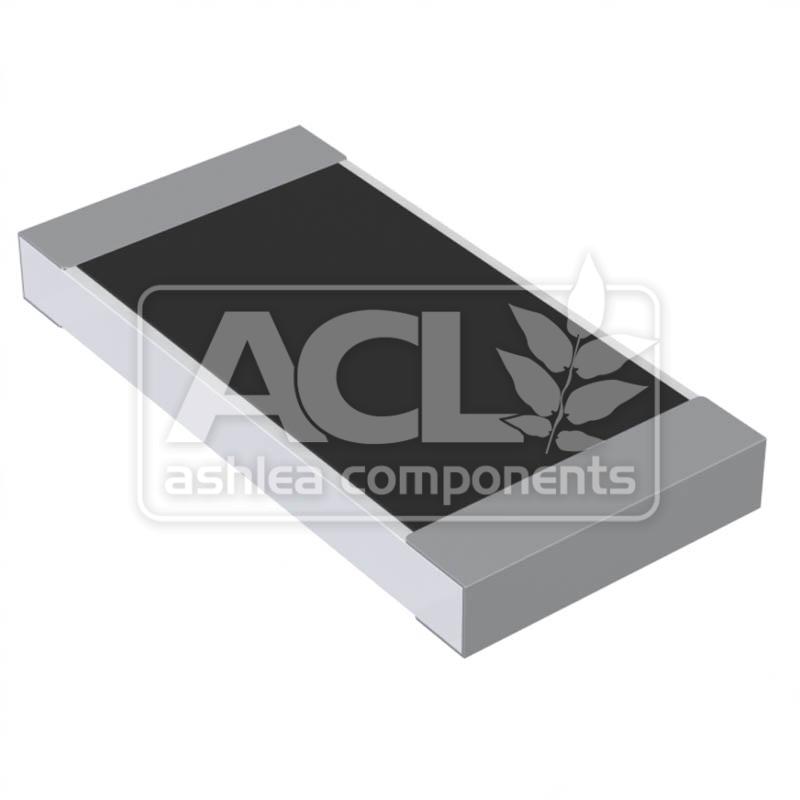

CRGS2010J1R8 – TE CONNECTIVITY
Resistor, Anti-Surge, 1.8 Ohm, 5%, CRGS2010, 2176251-4
Stock Quantity: 2364
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.57 |
| 10+ | |
| 50+ | |
| 100+ |
2364 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The TE Connectivity CRGS2010J1R8 is a robust 1.8 Ohm thick film surface-mount resistor designed for demanding applications. Its primary function is precise current limiting and voltage division within complex circuitry. A critical design consideration for thick film resistors of this nature is the trade-off between power dissipation capability and physical footprint; while the 2010 (5025 metric) case size offers a reasonable balance, designers must carefully manage thermal loads to prevent exceeding the rated power and ensure long-term reliability, especially in high-density PCB layouts.
Key Features
- Resistance: 1.8 Ohms
- Tolerance: ±5%
- Power Rating: 0.75W (typical, ambient temperature dependent)
- Operating Temperature Range: -55°C to +155°C
- Thick Film Technology
- SMD Package: 2010 (5.0mm x 2.5mm)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Current sensing in power supply output stages
- Load termination in signal conditioning circuits
- Inrush current limiting for sensitive components
- Voltage divider networks in control loops
