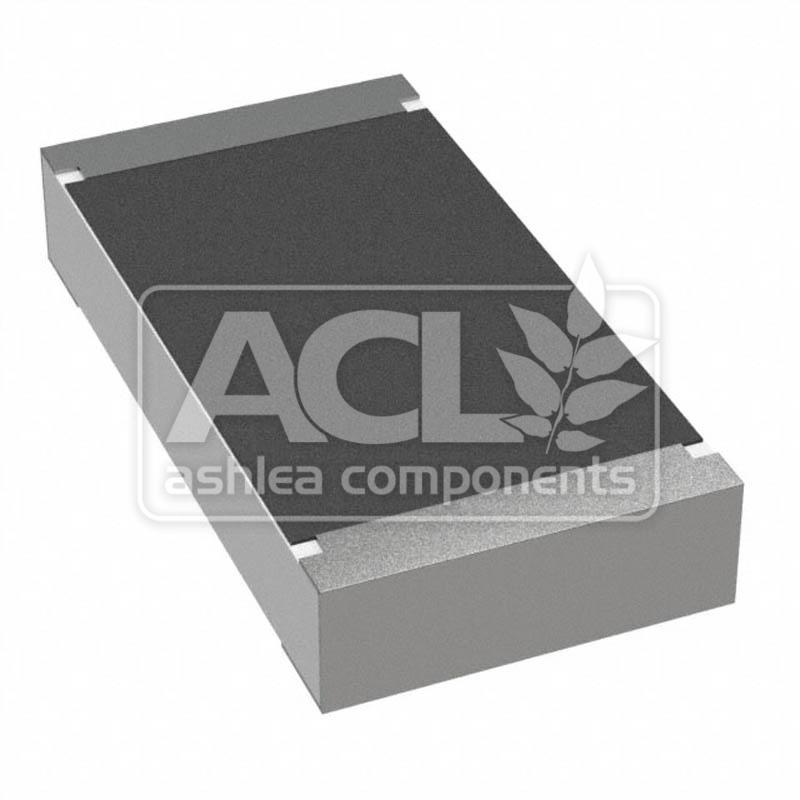

CRGS1206J1M0 – TE CONNECTIVITY
RES SMD 1M Ohm 5% 0.6W, 1206 Package Resistor
Stock Quantity: 3000
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.7 |
| 10+ | |
| 50+ | |
| 100+ |
3000 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The TE Connectivity CRGS1206J1M0 is a 1 MΩ, 5% tolerance thick-film surface-mount resistor, designed for robust performance in demanding electronic circuits. Its primary function is precise current limiting or voltage division. A critical design consideration for thick-film resistors of this magnitude is the potential for parasitic inductance at higher frequencies, which can affect impedance matching in sensitive RF applications, necessitating careful layout and filtering strategies if operating beyond DC or low-frequency regimes.
Key Features
- Resistance: 1 MΩ
- Tolerance: ±5%
- Technology: Thick Film
- Case Code: 1206 (3.2mm x 1.6mm)
- Mounting Style: Surface Mount (SMD)
- Packaging: Reel
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- High-impedance current sensing in battery management systems
- Voltage divider networks for sensor signal conditioning
- Pull-up/pull-down resistors in digital logic interfaces
- Filtering and biasing in audio amplifier circuits
