CD74ACT32M – TEXAS INSTRUMENTS
Part Number:
CD74ACT32M
Manufacturer:
Date Code:
RoHS:
RoHS Compliant
MSL:
N/A
COO:
Description:

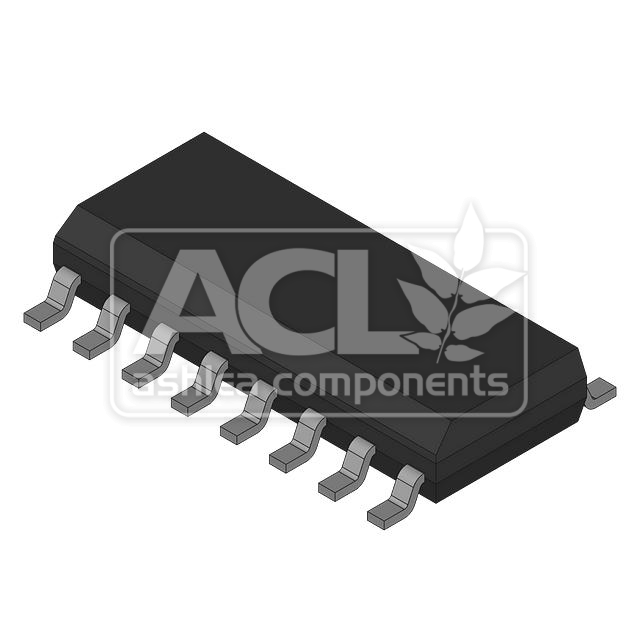

Quad Channel OR Gate IC, 14-SOIC
Datasheet:
Spotted a problem with product information? – let us know
ORDER NOW
Stock Quantity: 0
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Product Details:
Overview
The CD74ACT32M is a quad two-input OR gate integrated circuit manufactured by Texas Instruments. This device provides four independent OR gate functions, each performing a logical OR operation on its two inputs. The output of each gate is high if either or both of its inputs are high. It comes in a 14-pin SOIC (Small Outline Integrated Circuit) package, suitable for surface mount assembly.
Key Features
- Quad 2-Input OR Gate Configuration
- High-Speed CMOS Logic
- Operating Voltage: 4.5V to 5.5V
- Output Drive Capability: 24mA
Applications
This OR gate IC is commonly used in digital systems for implementing logic functions, signal routing, and data selection. Its high-speed operation and standard pinout make it suitable for a wide range of digital electronic circuits.
- Logic Function Implementation
- Signal Routing
- Data Selection
- Digital Circuit Design
