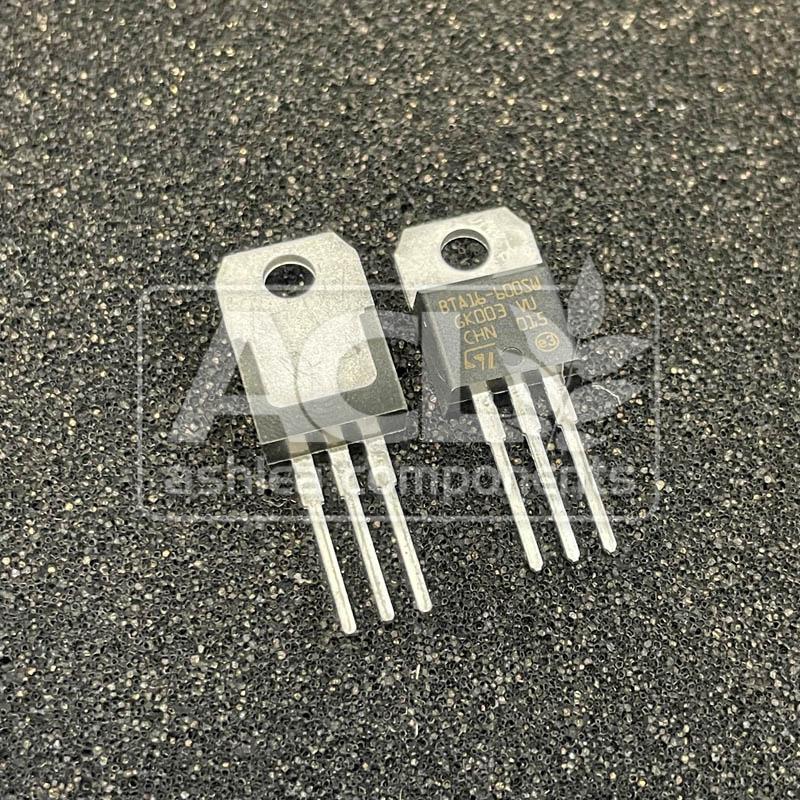

BTA16-600SWRG – STMicroelectronics
Sensitive Gate TRIAC, 600 V, 16 A, TO‑220 Package
Stock Quantity: 1
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.87 |
| 10+ | |
| 50+ | |
| 100+ |
1 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The STMicroelectronics BTA16-600SWRG is a high-performance 16A, 600V Snubberless™ triac designed for AC power control applications. Its critical operational characteristic is its ability to switch inductive loads with minimal external snubber circuitry, a key design consideration for reducing component count and board space. However, designers must carefully manage its gate trigger characteristics (Igt of 10mA, Vgt of 1.3V) to ensure reliable turn-on across varying temperature and voltage conditions, especially in noisy environments where false triggering could occur.
Key Features
- Rated Repetitive Off-State Voltage (VDRM): 600 V
- On-State Current (RMS): 16 A
- Non-Repetitive On-State Current (Peak): 168 A
- On-State Voltage (Max): 1.55 V
- Holding Current (Max): 15 mA
- Package: TO-220-3 (Through Hole)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- AC motor speed control in domestic appliances
- Solid-state relay switching for lighting dimming systems
- Power factor correction circuits in industrial equipment
- Heating element control in HVAC systems
