BAS21 – FSC

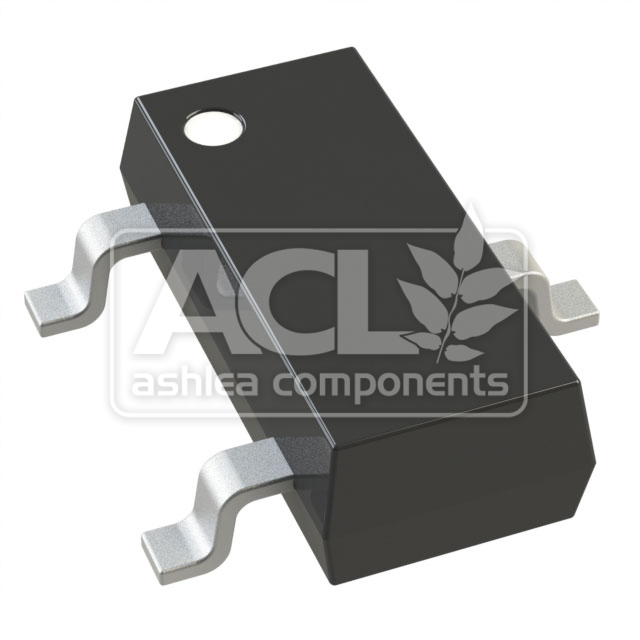

Diode, 200V, 200mA, Surface Mount, TO-236AB (SOT-23)
Stock Quantity: 2374
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.29 |
| 10+ | |
| 50+ | |
| 100+ |
2374 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The Nexperia BAS21,215 is a high-speed switching diode designed for general-purpose rectification and signal processing applications. Its critical operational characteristic is its low leakage current of 100 nA at 200V, ensuring minimal signal degradation in sensitive circuits. A common design trade-off to consider is its forward voltage drop of 1.25V at 200mA; while acceptable for many signal paths, designers must account for this voltage loss in power-sensitive applications or when driving loads directly.
Key Features
- 200V Peak Inverse Voltage (PIV)
- 200mA Average Forward Current (Io)
- 1.25V Maximum Forward Voltage (Vf) @ 200mA
- 50ns Reverse Recovery Time (trr)
- 100nA Reverse Leakage Current (Ir) @ 200V
- 5pF Junction Capacitance (Cj) @ 0V, 1MHz
- TO-236AB (SOT-23-3) Surface Mount Package
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- High-frequency signal coupling in RF front-ends
- Voltage clamping and transient suppression in digital logic
- Demodulation circuits in communication receivers
- Power sequencing for high-speed DDR memory
