B7P-VH(LF)(SN) – JST

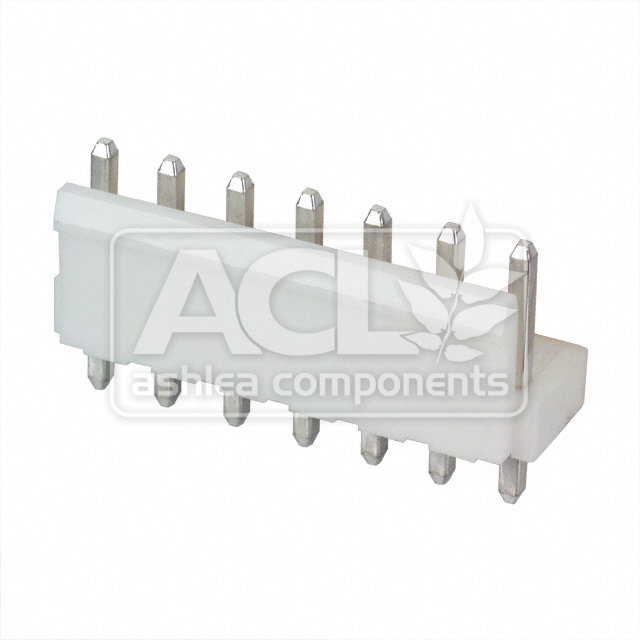

Connector, Multipole, PCB Mount, B7P-VH(LF)(SN)
Stock Quantity: 50
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.14 |
| 10+ | |
| 50+ | |
| 100+ |
50 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The JST B7P-VH(LF)(SN) is a robust 7-position, 0.156″ (3.96mm) pitch header designed for reliable board-to-cable interconnectivity. Its key operational characteristic is the secure locking ramp mechanism, ensuring positive mating retention crucial for vibration-prone environments. A critical design consideration for this through-hole header is managing thermal dissipation at its 10A current rating; while the brass contacts with tin plating offer good conductivity, engineers must account for potential voltage drop and localized heating in high-density assemblies to prevent exceeding the -25°C to 85°C operating temperature range.
Key Features
- Pitch: 0.156″ (3.96mm)
- Number of Positions: 7
- Current Rating: 10A
- Voltage Rating: 250V
- Mounting Type: Through Hole
- Dimensions: 9.40mm (Insulation Height)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Power distribution in industrial control panels
- Signal integrity in automotive electronic modules
- Interconnection for appliance control boards
- Wire harness termination in consumer electronics
