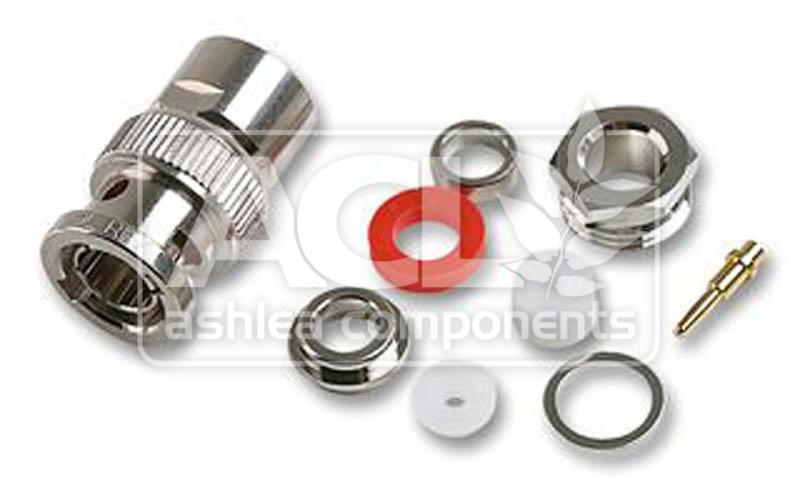

B1141A1-ND3G-1-50 – AMPHENOL
BNC Coaxial Straight Plug, Solder, 50 Ohm, RG58/RG58C/RG142A, Brass
Stock Quantity: 29
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 3.75 |
| 10+ | |
| 50+ | |
| 100+ |
29 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The Amphenol B1141A1-ND3G-1-50 is a robust, straight BNC coaxial plug meticulously engineered for reliable signal integrity in 50-ohm impedance systems. Its gold-plated brass center contact and Delrin insulator ensure low contact resistance and excellent dielectric properties, crucial for minimizing signal attenuation up to 4GHz. A key design consideration for this connector is the trade-off between the crimp termination’s mechanical robustness and the potential for impedance mismatch if crimp parameters are not precisely controlled during installation, a common challenge in high-frequency applications.
Key Features
- Connector Type: BNC Coaxial Plug, Straight
- Coaxial Cable Compatibility: RG58, RG58C, RG142A
- Maximum Frequency: 4GHz
- Working Voltage: 500 VRMS
- Contact Resistance: 1.5 mΩ (center), 1 mΩ (outer)
- Dimensions: Standard BNC form factor for cable mount
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- High-frequency signal coupling in RF front-ends
- Secure data transmission in test and measurement equipment
- Interconnects for broadcast video distribution systems
- Robust signal path in amateur radio transceivers
