ADG659YCPZ-REEL7 – ANALOG DEVICES

Part Number:

ADG659YCPZ-REEL7

Manufacturer:

ANALOG DEVICES

Date Code:

RoHS:

RoHS Compliant

MSL:

COO:

PHILIPPINES

Description:

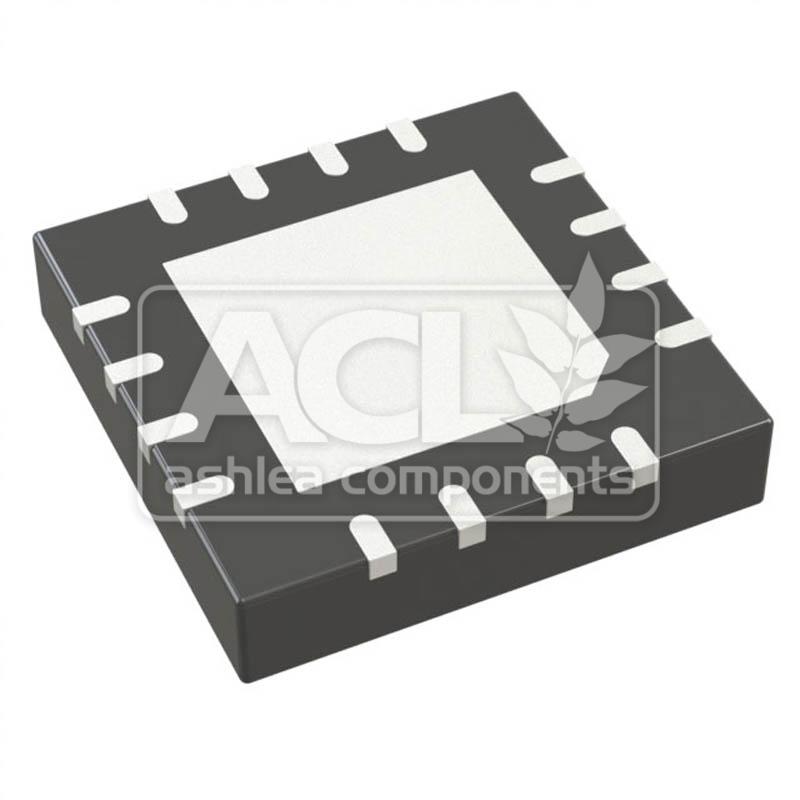

Switch IC, 2 Circuit, 4:1, 75 Ohm, 16-LFCSP-VQ (4×4)

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 0

GET QUOTE

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

The ADG659YCPZ-REEL7 is a CMOS 4:1 multiplexer IC manufactured by Analog Devices. This device features two independent single-pole, four-throw (SP4T) switch circuits. It offers a typical on-resistance of 75 Ohms and is supplied in a 16-lead LFCSP-VQ (4×4 mm) package. The ADG659YCPZ-REEL7 is designed for signal routing applications requiring low distortion and minimal signal attenuation.

Key Features

4:1 Multiplexer Configuration
Dual SP4T Switch
75 Ohm On-Resistance (Typical)
CMOS Technology
16-Lead LFCSP-VQ (4×4 mm) Package

Applications

This multiplexer is commonly used in various electronic systems where multiple signal sources need to be selectively routed to a single destination. Its compact size and low on-resistance make it suitable for space-constrained and performance-sensitive applications.

Automated Test Equipment (ATE)
Data Acquisition Systems
Signal Routing
