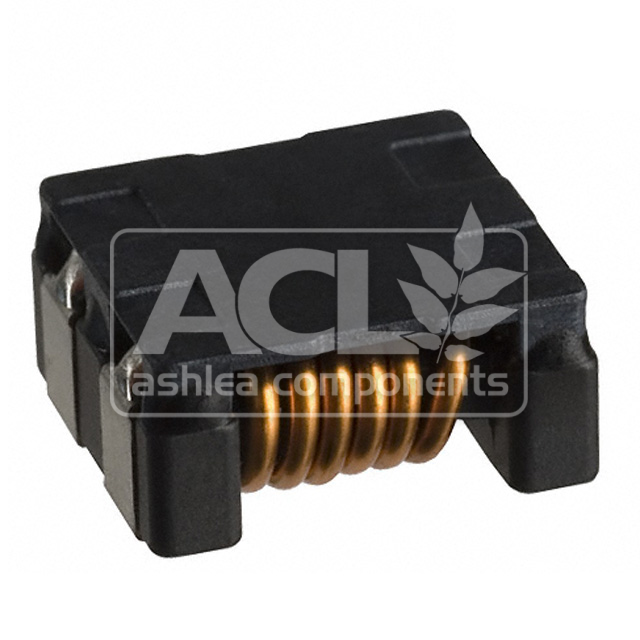

ACM1211-102-2PL-TL01 – TDK

Part Number:

ACM1211-102-2PL-TL01

Manufacturer:

TDK

Date Code:

RoHS:

RoHS Compliant

MSL:

COO:

CHINA

Description:

2-Line Common Mode Choke, SMD, 1kΩ @100MHz, 6A, 14mΩ DCR

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 0

GET QUOTE

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

The ACM1211-102-2PL-TL01 is a two-line Common Mode Choke manufactured by TDK. This surface mount device (SMD) is designed to suppress common mode noise in various electronic circuits. It presents an impedance of 1kΩ at 100MHz and is rated for a maximum current of 6A. The choke exhibits a DC resistance (DCR) of 14mΩ.

Key Features

2-Line Configuration
Surface Mount Package
1 kΩ Impedance @ 100 MHz
6 A Current Rating
14 mΩ DC Resistance

Applications

This common mode choke is commonly utilized in electronic devices to mitigate unwanted noise and interference. Its compact size and performance characteristics make it suitable for a range of applications where signal integrity is crucial.

USB Interface Filtering
Power Line Noise Suppression
Signal Line Noise Reduction
