8520-4500PL – 3M
Part Number:
8520-4500PL
Manufacturer:
Date Code:
RoHS:
RoHS Compliant
MSL:
1
COO:
JAPAN
Description:
Connector, Receptacle, 20 Position, 0.100″ TH, Gold-Plated Contacts
Datasheet:
Spotted a problem with product information? – let us know
ORDER NOW
Stock Quantity: 0
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Product Details:
Overview

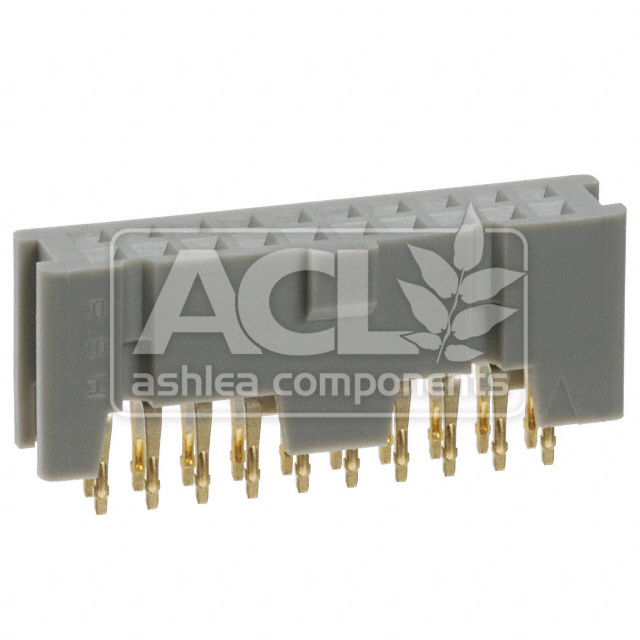

The 8520-4500PL is a 20-position receptacle connector manufactured by 3M. This connector features through-hole mounting with a 0.100″ pitch. The contacts are gold-plated to ensure reliable electrical connection and corrosion resistance. It is designed for board-to-board or wire-to-board connections in various electronic systems.
Key Features
- 20 Contact Positions
- 0.100″ Pitch
- Through-Hole Termination
- Gold-Plated Contacts
Applications
This receptacle connector is commonly used in electronic assemblies requiring a secure and dependable connection. Its design makes it suitable for a range of applications where signal integrity and durability are important considerations.
- Printed Circuit Board (PCB) Interconnects
- Data Communication Equipment
- Instrumentation and Control Systems
