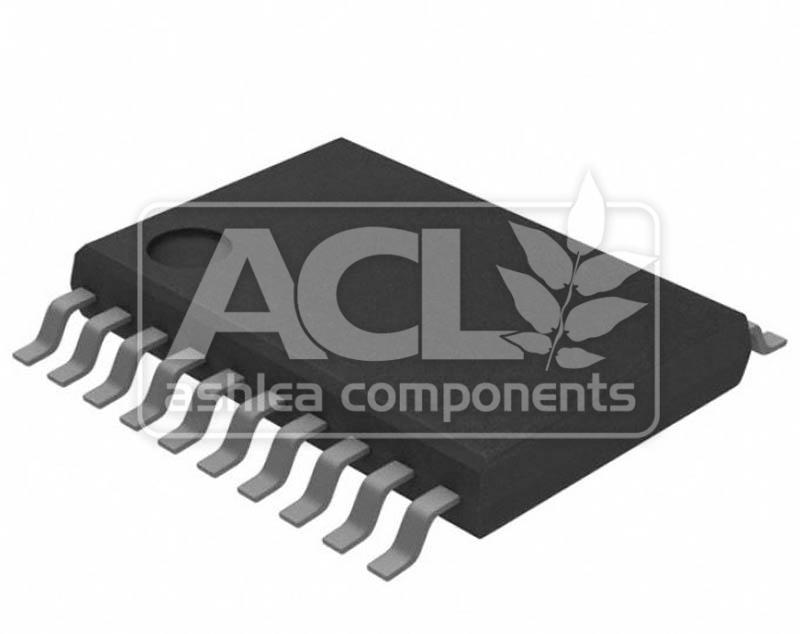

74VHCT245AMTCX – FSC
Transceiver, Non-Inverting, 8-Bit, 3-State Output, 20-TSSOP
Stock Quantity: 438
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.11 |
| 10+ | |
| 50+ | |
| 100+ |
438 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The onsemi 74VHCT245AMTCX is a high-speed, low-power CMOS octal transceiver designed for bidirectional signal buffering and level translation in digital systems. Its key operational characteristic is its ability to handle 5.5V logic levels while interfacing with 3.3V systems, providing robust signal integrity. A critical design consideration when employing this device is managing the propagation delay and output slew rate to prevent signal reflections and ensure reliable operation in high-frequency environments, especially when driving capacitive loads. This transceiver offers a versatile solution for bus interfacing and signal distribution.
Key Features
- Logic Type: Transceiver, Non-Inverting
- Number of Bits per Element: 8
- Output Type: 3-State
- Supply Voltage: 4.5V to 5.5V
- Output Current: ±8mA (High/Low)
- Package: 20-TSSOP (4.40mm width)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- High-speed data bus buffering in embedded systems
- Level shifting between 5V and 3.3V microcontroller interfaces
- Signal distribution in complex FPGA I/O expansion
- Interfacing memory modules with mixed voltage rails
