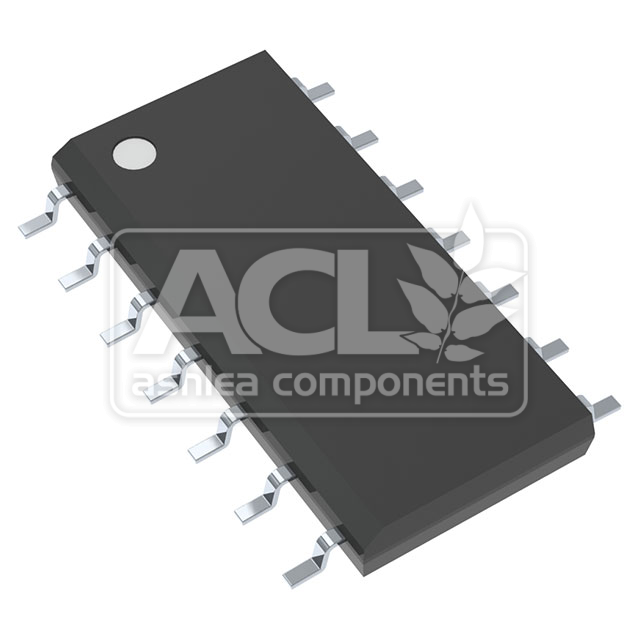

74AC32SC – TBC
Quad Channel OR Gate IC, 14-SOIC Package
Stock Quantity: 25
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.54 |
| 10+ | |
| 50+ | |
| 100+ |
25 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The onsemi 74AC32SC is a high-speed CMOS Quad 2-input OR gate, crucial for implementing combinatorial logic functions in digital systems. Its defining characteristic is its rapid propagation delay, enabling fast signal processing. A key design consideration when utilizing this component is the trade-off between its low quiescent current and its significant output drive capability; while power consumption is minimal in standby, driving heavy capacitive loads can lead to increased power dissipation, necessitating careful impedance matching and decoupling strategies in high-frequency applications.
Key Features
- Logic Type: OR Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Supply Voltage Range: 2V to 6V
- Max Propagation Delay: 7.5ns @ 5V, 50pF
- Package: 14-SOIC (0.154″ width)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Digital signal multiplexing and data selection
- Implementing Boolean logic functions in state machines
- Address decoding and chip select generation
- Control signal gating in embedded systems
