744235601 – WURTH

Part Number:

744235601

Manufacturer:

WURTH

Date Code:

RoHS:

RoHS Compliant

MSL:

COO:

TAIWAN

Description:

1µH Common Mode Choke, 2-Line, SMD, 600Ω@100MHz, 1.2A, 0.12Ω DCR @ 100kHz

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 0

GET QUOTE

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

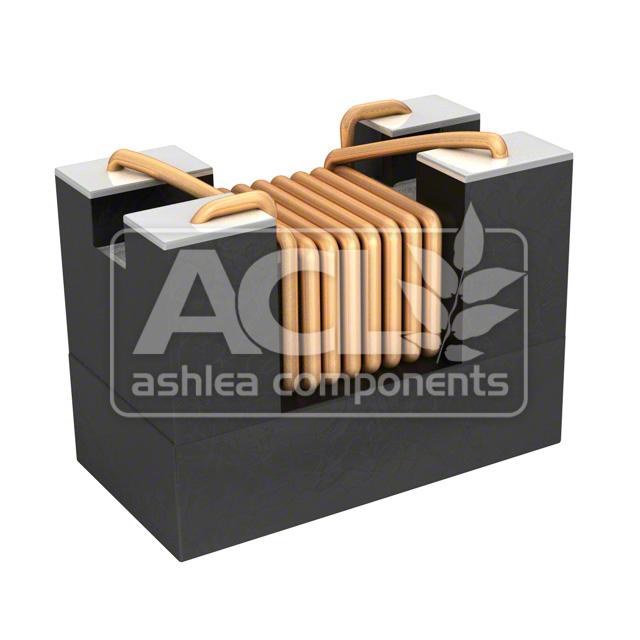

The 744235601 is a 1µH Common Mode Choke manufactured by WURTH. This dual-line choke is designed for surface mount applications and offers impedance of 600Ω at 100MHz. It is rated for a maximum current of 1.2A and exhibits a DC resistance of 0.12Ω, measured at 100kHz.

Key Features

1µH Inductance
600Ω Impedance @ 100MHz
1.2A Rated Current
0.12Ω DC Resistance
Surface Mount Device (SMD)

Applications

This common mode choke is typically used to suppress unwanted noise and interference in various electronic circuits. Its compact size and performance characteristics make it suitable for a range of applications.

Power Line Filtering
Signal Line Noise Suppression
EMI Reduction in Electronic Devices
