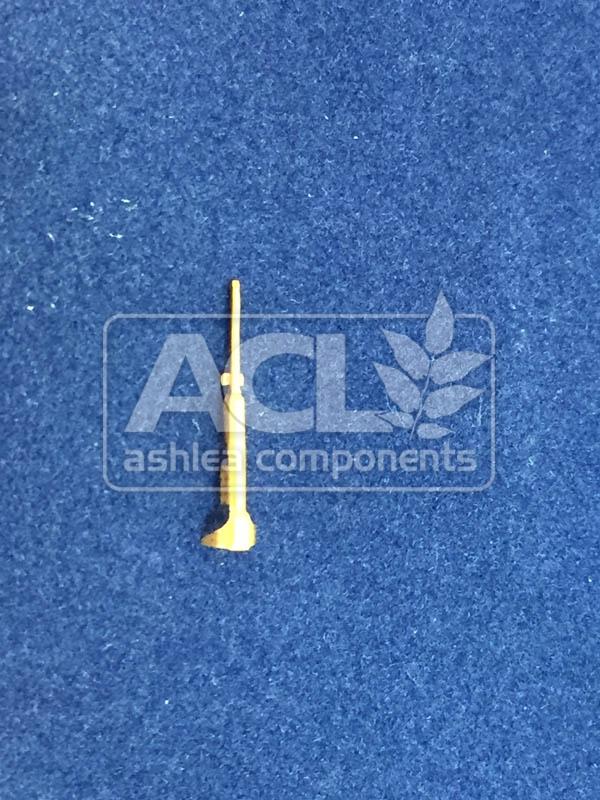

48116-000LF – AMPHENOL
Mini-PV Pin Contact, Gold Plated, 22–26 AWG Wire
Stock Quantity: 426
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.55 |
| 10+ | |
| 50+ | |
| 100+ |
426 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The Amphenol ICC 48116-000LF is a high-performance pin contact designed for robust electrical connections in demanding applications. Its primary function is to provide a reliable termination point for 22-26 AWG wires, ensuring signal integrity through a gold plating with a substantial 50.0µin (1.27µm) thickness. A critical design consideration for crimp contacts is the trade-off between termination force and wire retention strength; achieving optimal mechanical stability while minimizing conductor deformation requires precise tooling and careful process control, a factor expertly managed in the design of this Amphenol component.
Key Features
- Contact Type: Pin
- Wire Gauge Compatibility: 22-26 AWG
- Termination Method: Crimp
- Contact Plating: Gold
- Plating Thickness: 50.0µin (1.27µm)
- Dimensions: Standard pin contact form factor
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- High-density signal routing in industrial automation controllers.
- Robust power delivery in automotive sensor modules.
- Reliable interconnects for aerospace data acquisition systems.
- Secure wire termination in medical device power supplies.
