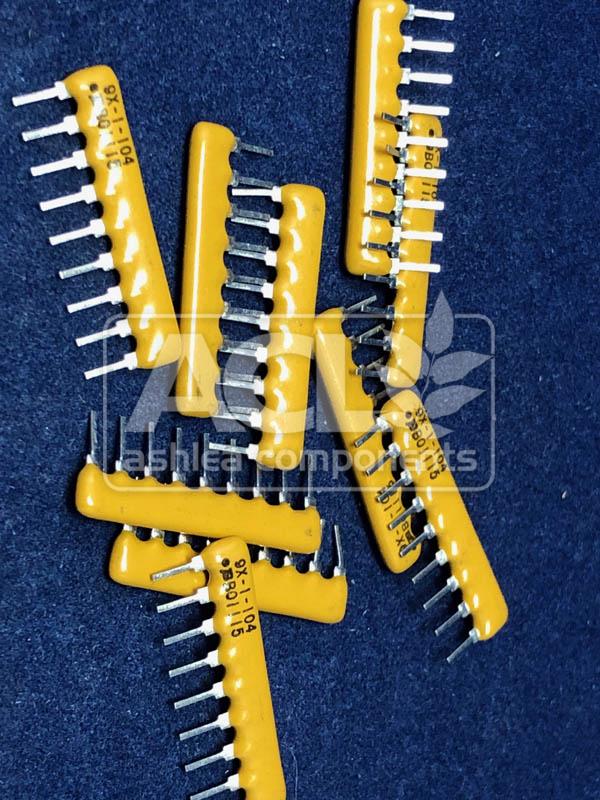

4609X-101-104 – BOURNS
Bussed Metal Glaze Thick Film Resistor Network, 1.13 W, 100 kOhms, 100 V, 2%, 100 ppm, Through Hole
Stock Quantity: 1065
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 2.92 |
| 10+ | |
| 50+ | |
| 100+ |
1065 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The Bourns 4609X-101-104LF is a high-density 8-element bussed resistor network designed for precise signal conditioning and impedance matching in complex circuitry. Its critical operational characteristic lies in its consistent resistance value of 100k Ohms per element with a tight ±2% tolerance, ensuring predictable circuit behavior. A key design consideration for such arrays is the potential for thermal coupling between elements; while each element is rated for 200mW, careful layout is required to prevent excessive self-heating from impacting adjacent resistors’ stability, especially in high-power density applications.
Key Features
- 8 Resistor Elements, Bussed Configuration
- 100k Ohm Resistance per Element
- ±2% Resistance Tolerance
- 200mW Power Rating Per Element
- ±100ppm/°C Temperature Coefficient
- 9-SIP Package (22.81mm x 2.49mm x 5.08mm)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- High-precision voltage division in analog front-ends
- Termination networks for multi-drop data buses
- Current limiting in sensor signal conditioning circuits
- Pull-up/pull-down resistor arrays in digital logic interfaces
