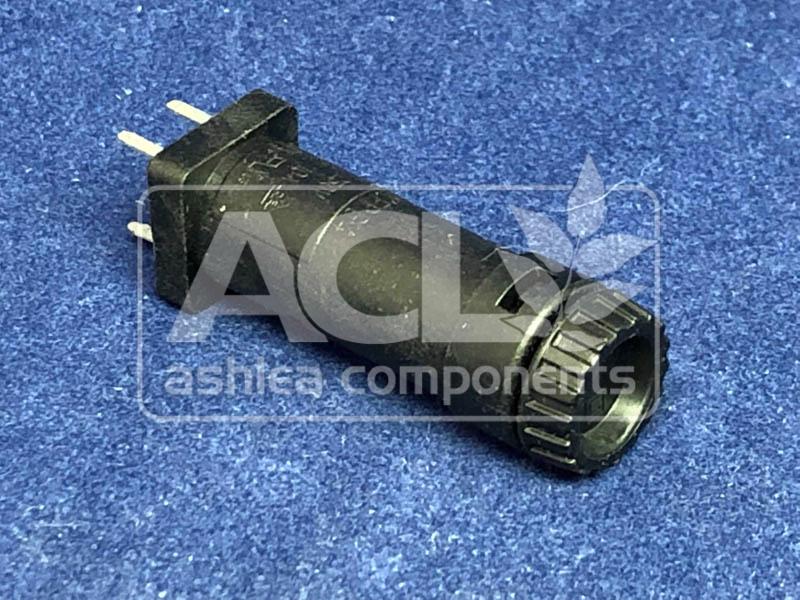

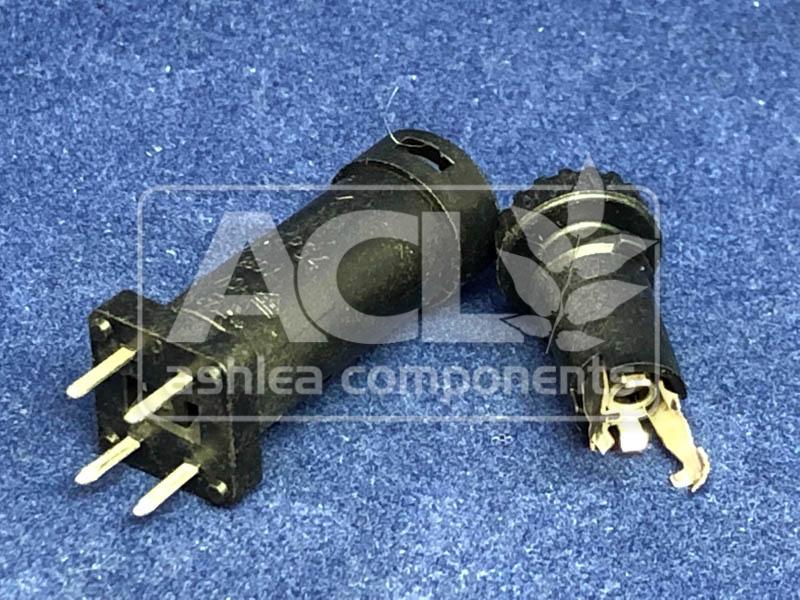

3101.0045 – SCHURTER
Fuse Holder, 1 Circuit, 10A-16A, 250V-500V, 5x20mm Fuse, Through Hole, PCB Mount
Stock Quantity: 284
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 3.33 |
| 10+ | |
| 50+ | |
| 100+ |
284 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The SCHURTER 3101.0045 is a robust, single-circuit fuseholder designed for PCB mounting, specifically engineered to accommodate standard 5mm x 20mm cartridge fuses up to 16A and 500V. Its primary function is to provide a reliable, user-serviceable point of overcurrent protection within electronic systems. A critical design consideration for this component is managing thermal dissipation under continuous high-current operation; while rated for 16A, sustained operation near this limit necessitates careful PCB layout and adequate copper plane integration to prevent excessive temperature rise, which could compromise fuse performance and surrounding components.
Key Features
- Fuseholder Type: Cartridge Holder
- Current Rating: 16 A
- Voltage Rating: 500V
- Fuse Size Compatibility: 5mm x 20mm (0.197″ Dia x 0.787″ L)
- Mounting Type: Through Hole (PCB)
- Termination Style: PC Pin
- Dimensions: Compact form factor suitable for dense PCB designs
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Primary power input protection in AC-DC power supplies
- Overcurrent safeguarding in industrial control modules
- In-line fusing for high-power DC-DC converters
- Protection of sensitive test and measurement equipment front-ends
