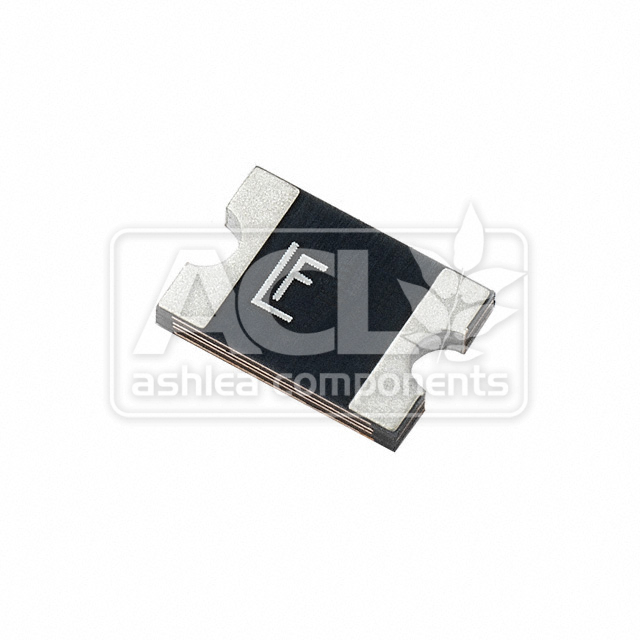

2920L200DR – LITTELFUSE
PTC Resettable Fuse, 2A Ih, 15V, SMD 2920, Polymeric, Concave.
Stock Quantity: 370
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.95 |
| 10+ | |
| 50+ | |
| 100+ |
370 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The Littelfuse 2920L200DR is a surface-mount Polymeric Positive Temperature Coefficient (PTC) resettable fuse designed for robust circuit protection. Its primary function is to limit fault current, automatically resetting once the fault is cleared. A critical design consideration for this device is its inherent resistance increase post-trip, which, while enabling reset, can introduce a voltage drop and power dissipation that must be accounted for in the system’s steady-state operation to prevent nuisance tripping or excessive heat generation.
Key Features
- Maximum Voltage Rating: 15V
- Hold Current (Ih): 2 A
- Trip Current (It): 4 A
- Maximum Fault Current: 40 A
- Initial Resistance (Ri): 50 mOhms (Min)
- Package: 2920 (7351 Metric), Concave (7.35mm x 5.12mm)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Overcurrent protection for low-voltage DC power supplies.
- Inrush current limiting for sensitive semiconductor devices.
- Fault isolation in battery management systems.
- Protection against short circuits in consumer electronics peripherals.
