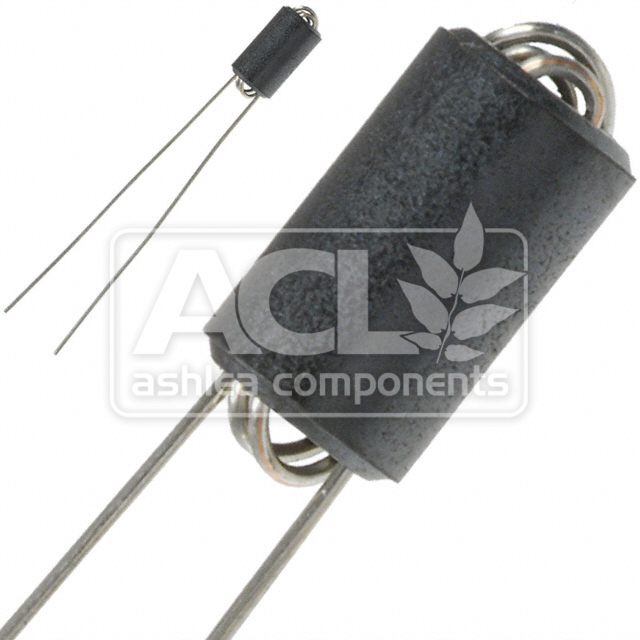

28C0236-0EW-10 – LAIRD
998 Ohm Ferrite Bead, Radial, Single Line
Stock Quantity: 11
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.2 |
| 10+ | |
| 50+ | |
| 100+ |
11 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The Laird 28C0236-0EW-10 is a high-performance single-line ferrite bead meticulously engineered for effective EMI suppression in power delivery networks. Its primary function is to attenuate unwanted high-frequency noise without significantly impacting the desired DC or low-frequency signal integrity. A critical design consideration for engineers is balancing the bead’s impedance at the target frequency (998 Ohms @ 100 MHz) against its DC resistance (10 mOhm max), as excessive DC resistance can lead to undesirable voltage drops and power dissipation, particularly under high current loads up to 5A.
Key Features
- Impedance: 998 Ohms @ 100 MHz
- Maximum Current Rating: 5A
- Maximum DC Resistance: 10 mOhm
- Operating Temperature Range: -40°C to 125°C
- Mounting Type: Through Hole
- Dimensions: 0.236″ Dia x 0.394″ L (6.00mm x 10.00mm)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Power line filtering for sensitive analog circuitry
- EMI mitigation in switched-mode power supply (SMPS) outputs
- Noise suppression in digital signal lines
- Insertion loss reduction in communication interfaces
