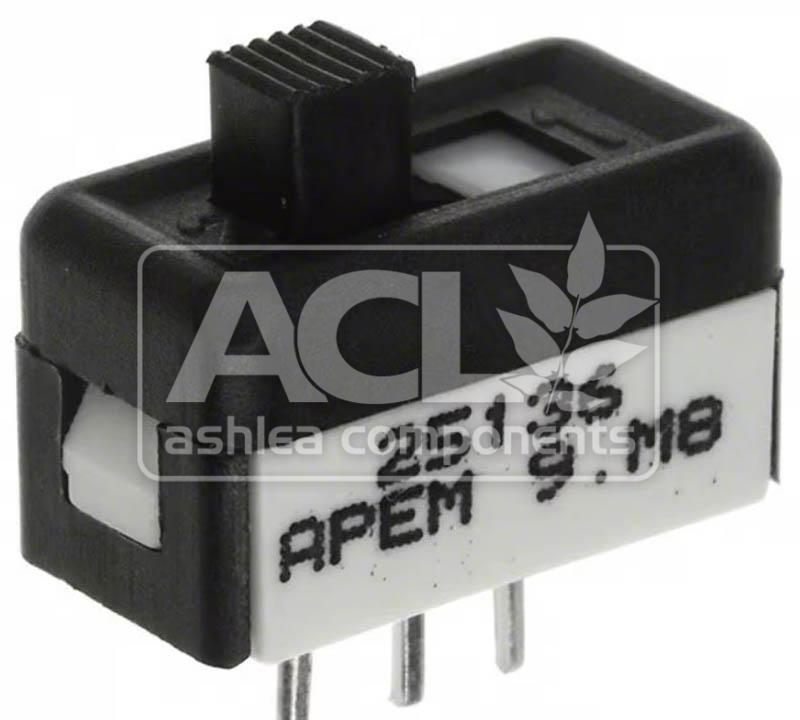

25136NAH – APEM
SPDT Slide Switch, Through-Hole Mounting
Stock Quantity: 14
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 2.92 |
| 10+ | |
| 50+ | |
| 100+ |
14 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The APEM 25136NAH is a robust Single Pole Double Throw (SPDT) slide switch designed for reliable circuit control in demanding environments. Its core functionality lies in its ability to switch between two distinct circuit configurations with a 4A AC / 1A DC rating, ensuring stable operation for moderate power loads. A critical design consideration for engineers is the trade-off between its mechanical durability, evidenced by a 20,000-cycle lifespan, and the inherent contact bounce associated with mechanical switching, which can impact signal integrity in high-speed applications if not properly managed through downstream filtering or debouncing circuits.
Key Features
- SPDT Circuit Configuration
- 4A @ 125V AC, 1A @ 30V DC Current Rating
- Through Hole Mounting Type
- PC Pin Termination Style
- Epoxy Sealed Terminals for Environmental Protection
- Compact Dimensions: 2.80mm Actuator Length
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Power mode selection in portable instrumentation
- Signal routing in industrial control panels
- On/Off switching for auxiliary circuits in automotive systems
- Configuration setting in embedded systems with moderate current demands
