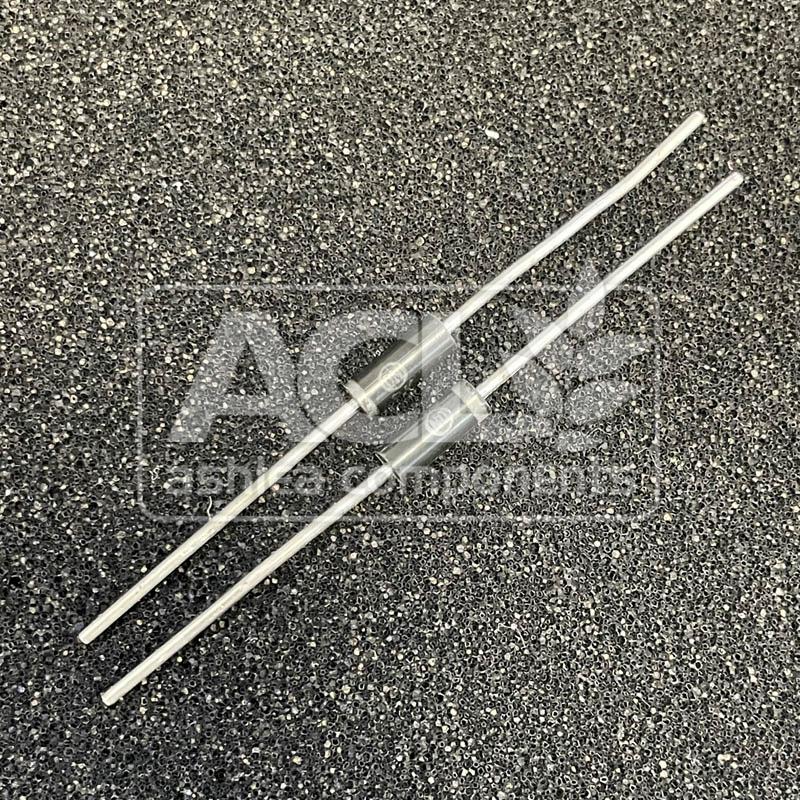

1N5350B – MULTICOMP
Zener Diode, Single, 13V, 5W, 5%, DO-201AE, 2-Pin, 150°C
Stock Quantity: 322
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 0.6 |
| 10+ | |
| 50+ | |
| 100+ |
322 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The MULTICOMP 1N5350B is a 5W Zener diode designed for robust voltage regulation applications. Its primary function is to maintain a stable 13V output voltage, even under fluctuating input conditions, by shunting excess current. A critical design consideration for this device is managing thermal dissipation; while rated at 5W, achieving this continuously requires careful heatsinking and consideration of ambient temperature, as exceeding its junction temperature limit will compromise its voltage regulation accuracy and long-term reliability, a common trade-off in high-power discrete components.
Key Features
- Zener Voltage (Vz): 13 V
- Power Dissipation (Pd): 5 W
- Voltage Tolerance: 5 %
- Maximum Reverse Leakage Current (Ir): 1 uA
- Zener Impedance (Zz): 2.5 Ohms
- Package: DO-35-2 (Through Hole, Axial)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Precision voltage referencing in power supply circuits
- Overvoltage protection for sensitive analog circuitry
- Voltage clamping in high-current transient suppression
- Establishing stable bias points in discrete amplifier stages
