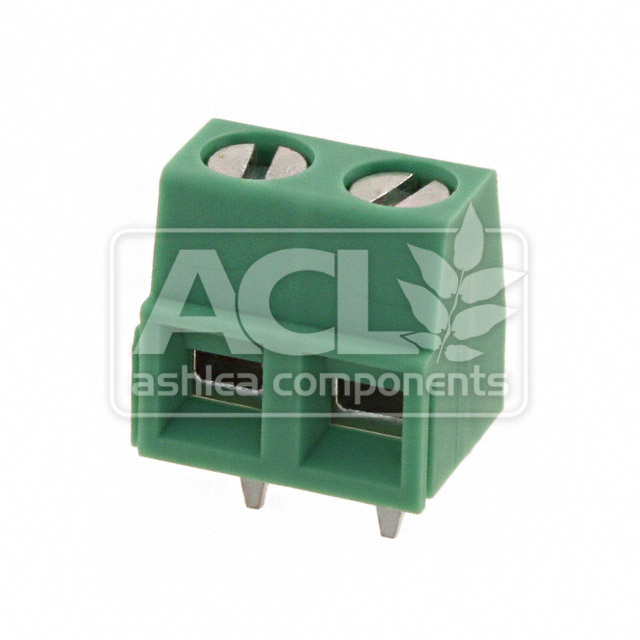

1729128 – PHOENIX CONTACT
2-Position Terminal Block, Horizontal, 5.08mm Pitch, Wire-to-Board, Through-Hole
Stock Quantity: 20
Selling Unit: Each
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | 1.46 |
| 10+ | |
| 50+ | |
| 100+ |
20 in stock
Contact us for volume pricing
- Same day shipping if ordered before 14.00 GMT
- 6 month warranty on all stock items
- All stock held and shipped from our UK warehouse
- Worldwide shipping available, contact us for a quotation
- We can ship on your DHL or UPS account if required
- Any import duties or taxes are the responsibility of the receiver
Overview
The PHOENIX CONTACT 1729128 is a robust 2-position terminal block designed for reliable wire-to-board connections with a 5.08mm pitch. Its primary function is to facilitate secure and efficient termination of conductors onto printed circuit boards, crucial for signal and power distribution in industrial automation. A key design consideration is the inherent trade-off between the rising cage clamp’s ease of use and the potential for vibration-induced loosening; engineers must ensure adequate strain relief and proper torque application (0.5-0.6 Nm) to maintain long-term connection integrity, a critical factor for system uptime and safety.
Key Features
- 2 Positions, 1 Level
- 0.200″ (5.08mm) Pitch
- Horizontal with Board Mating Orientation
- 10 A Current Rating
- 300 V Voltage Rating
- Through Hole Mounting Type
- Dimensions: 10.16mm L x 15.24mm W x 11.4mm H (approx.)
Applications
The component is engineered for deployment in systems requiring high reliability and performance under specific operating conditions. It provides functional stability across the stated design envelope.
- Power distribution in industrial control panels
- Signal interfacing for sensor networks
- Input/output termination for programmable logic controllers (PLCs)
- Interconnection of modular electronic assemblies
