132289 – AMPHENOL

Part Number:

132289

Manufacturer:

AMPHENOL

Date Code:

RoHS:

RoHS Compliant

MSL:

COO:

CHINA

Description:

SMA Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch; Panel Mount Solder

Datasheet:

Spotted a problem with product information? – let us know

ORDER NOW

Stock Quantity: 0

GET QUOTE

Contact us for volume pricing

Same day shipping if ordered before 14.00 GMT
6 month warranty on all stock items
All stock held and shipped from our UK warehouse
Worldwide shipping available, contact us for a quotation
We can ship on your DHL or UPS account if required
Any import duties or taxes are the responsibility of the receiver

Product Details:

Overview

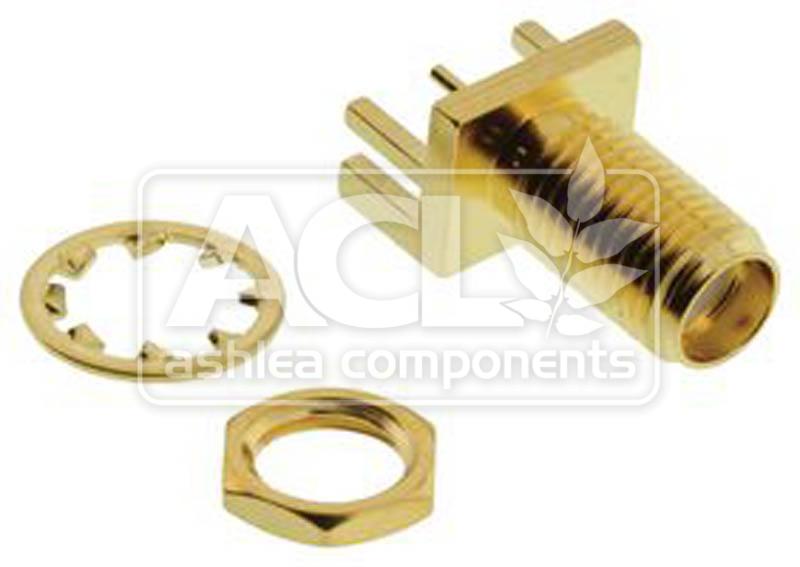

The 132289 is an SMA connector receptacle manufactured by AMPHENOL. This female socket is designed for board edge mounting, utilizing an end launch configuration. It maintains a characteristic impedance of 50 Ohms and is intended for panel mounting with a solder termination.

Key Features

SMA Connector Type
Female Socket Gender
50 Ohm Impedance
Board Edge, End Launch Mount
Solder Termination

Applications

This SMA connector is commonly used in radio frequency (RF) signal transmission and reception circuits. Its design makes it suitable for various electronic devices where a secure and reliable coaxial connection is needed. The panel mount feature allows for secure integration into equipment enclosures.

Wireless Communication Systems
Test and Measurement Equipment
Microwave Applications
